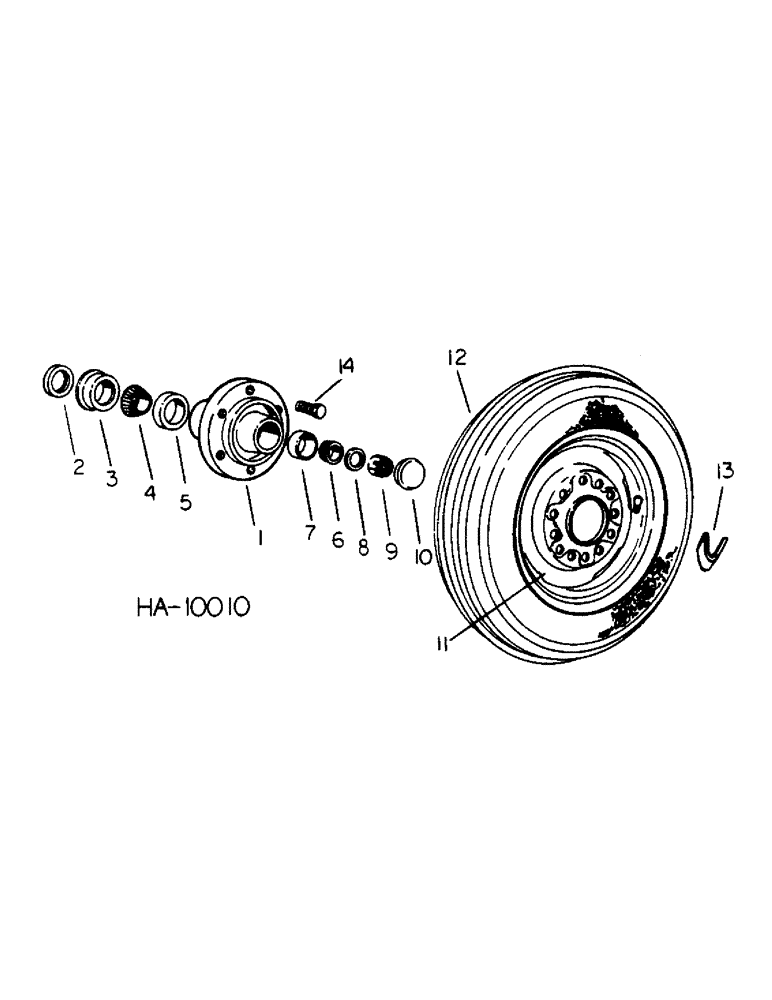

Запчасти Case IH 55 (E-05) - OUTER WHEEL AND HUB

1

810087C1

HUB

outer wheel

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, hub inner bearing

2шт.

5

651817R1

BEARING CUP

CUP, hub outer bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, hub outer bearing

2шт.

8

467750R1

WASHER

.781 x 1.500 x .105

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

622192R91

WHEEL

15 x 5 KB outer

2шт.

12

TIRE, 7.60-15 6 ply 1-1 outer wheel

2шт.

387897R91

VALVE STEM

VALVE ASSY, TR-415 tire

2шт.

13

811382C1

PACKAGE

tire valve guard service, includes 12 guards & 1-pamphlet

1шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 7/8 wheel

12шт.
