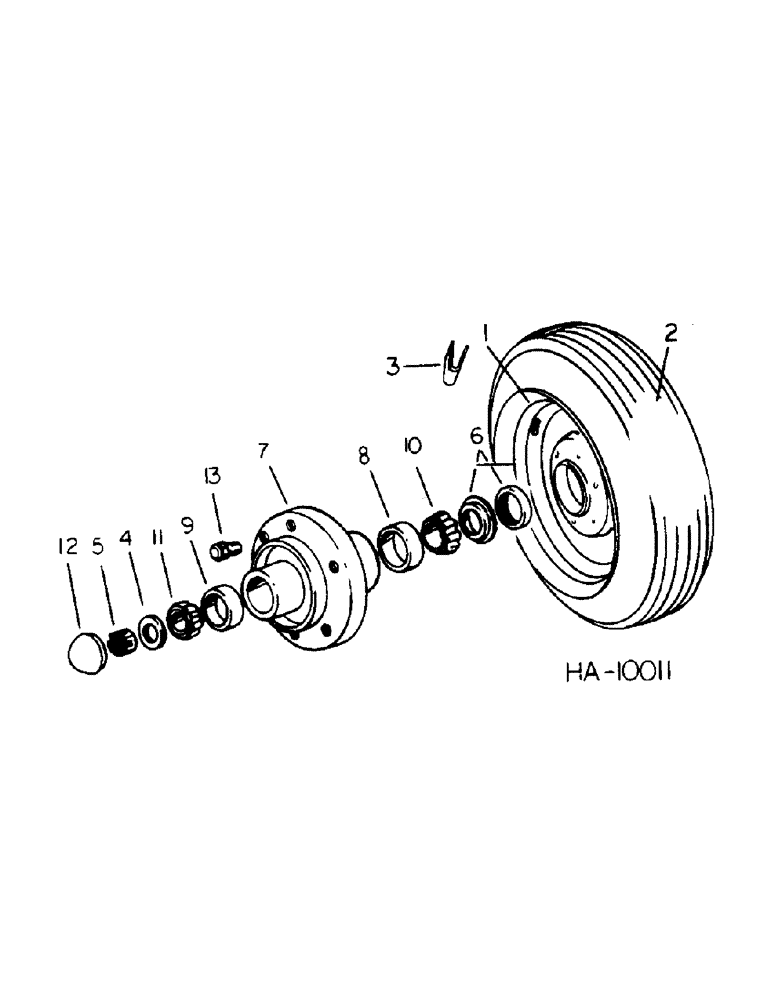

Запчасти Case IH 55 (E-04) - CENTER WHEEL AND HUB

1

481344R91

WHEEL

14 x 8 KB center

1шт.

2

TIRE, 9.5L-14 8 ply 1-1 center wheel

1шт.

387841R91

VALVE

ASSY, TR-413 tire

1шт.

3

811382C1

PACKAGE

tire valve guard service, includes 12 guards & 1-pamphlet

1шт.

4

619373R1

WASHER

.906 x 2.000 x .164

1шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slotted hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

6

606556R91

OIL SEAL

SEAL ASSY, oil

1шт.

7

606468R11

HUB

ASSY, center wheel, includes 1-663558R1, cup and 1-651817R1, cup

1шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

1шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

1шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

1шт.

12

663906R1

CAP

wheel hub

1шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

6шт.
