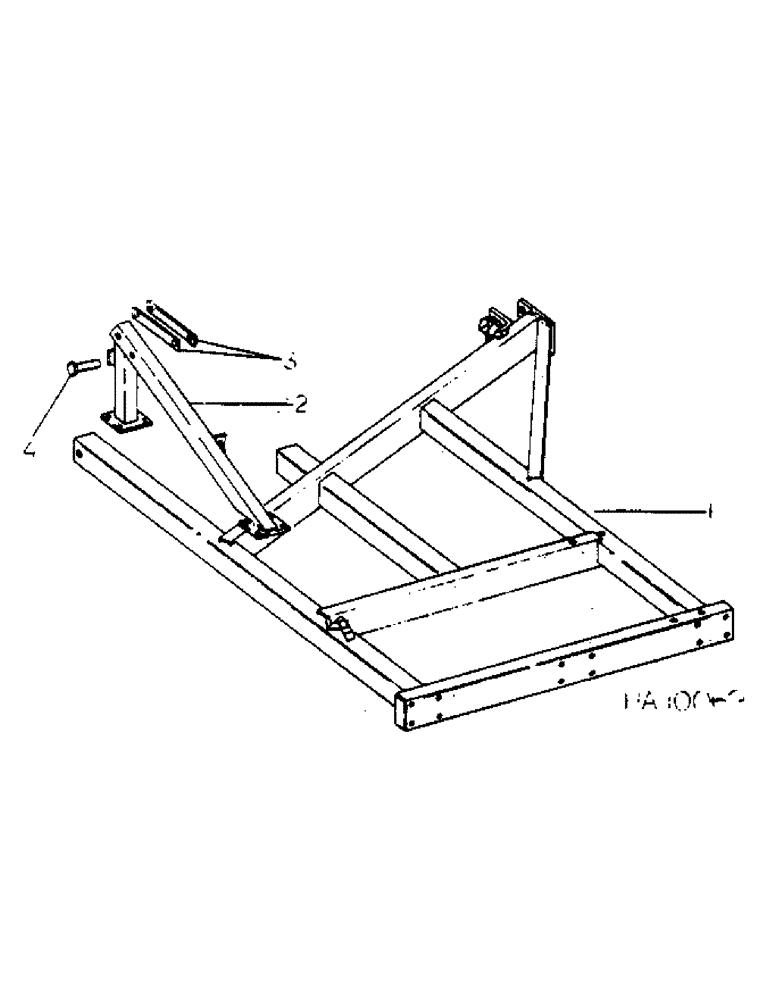

Запчасти Case IH 55 (E-03) - WING FRAME

1

811807C2

FRAME ASSY, wing, for machines built prior to June 1976 & w/C1121 ident plate

1шт.

1

811476C91

FRAME

ASSY, wing, replaces 813521C1 includes 1-810170C1, for machines built June 1976 and since w/C1131 ident plate

1шт.

810170C1

PRODUCT GRAPHIC

wing frame

1шт.

2

811825C1

FRAME

ASSY, wing lift

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

8шт.

3

811852C1

BAR

hydraulic cylinder connecting

2шт.

4

936587R91

PIN

ASSY, connecting bar

3шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

3шт.

20885R1

WASHER

1.156 x 2.000 x .054

2шт.
