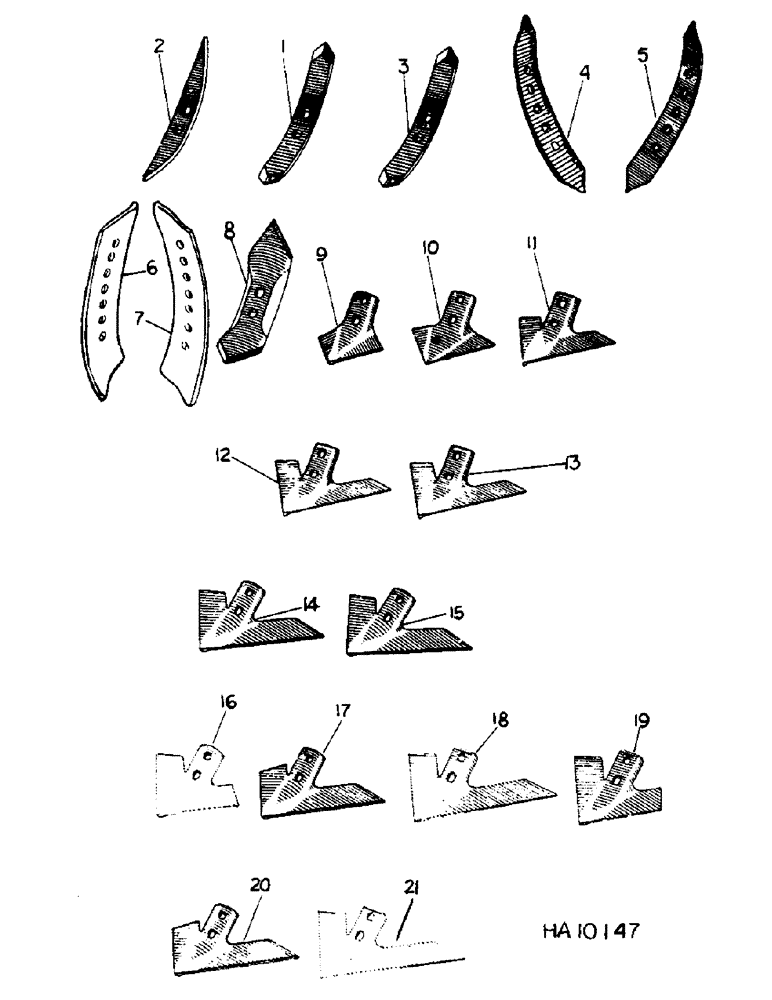

Запчасти Case IH 55 (A-04) - GROUND WORKING TOOLS
№
Артикул
Название
Примечание
Количество
1
601986R1
POINT
2 inch reversible chisel, regular for all machines except 10 foot and 13 foot trail behind w/55 conser-till
1шт.
2
602594R1
POINT
2 inch reversible spike, special for all machines, not w/conser-till
1шт.
3
602862R1
POINT
2 inch hard surfaced chisel, special for all machines prior to 1975, not w/conser-till
1шт.
4
594545R1
SHOVEL
3 inch twisted LH, special for all machines, use w/594546R1, shovel, 4 used on 7 foot machine, 6 used on 11 foot machine, not w/conser-till
1шт.
5
594546R1
SHOVEL
3 inch twisted RH, special for all machines, use w/594545R1, shovel, 3 used on 7 foot machine, 5 used on 11 foot machine, not w/conser-till
1шт.
6
812384C2
SHOVEL
LH throw twisted w/55 conser-till must be supplied with 812384C2 & 812385C2, shovels
1шт.
7
812385C2
SHOVEL
SHOVE, RH throw twisted w/55 conser-till must be supplied with 812384C2 & 812385C2, shovels
1шт.
8
602595R1
TIP
SHOVEL, 4-1/2 inch reversible, special for all machines, not w/conser-till
1шт.
9
602276R2
SWEEP
SHOVEL, 8 inch, 1/4 inch material, special for all machines, not w/conser-till
1шт.
9
810192C1
SHOVEL
SWEEP, 8 in., 1/4 in. material, for use on competition machines
1шт.
10
602596R2
TIP
SHOVEL, 10 inch, 1/4 inch material, special for all machines, not w/conser-till
1шт.
10
810193C1
SHOVEL
SWEEP, 10 in., 1/4 in. material, for use on competition machines
1шт.
11
603054R3
TIP
SWEEP, 12 inch, 1/4 inch material, special for all machines, not w/conser-till
1шт.
11
810194C1
SHOVEL
SWEEP, 12 in., 1/4 in. material, for use on competition machines
1шт.
11
602257R3
TOOTH
SWEEP, 12 inch, 5/16 inch material, special for all machines, not w/conser-till
1шт.
12
596624R1
SHOVEL
SWEEP, 13-1/2 inch high lift, special for all machines prior to 1973, not w/conser-till
1шт.
13
603055R3
TIP
SWEEP, 14 inch, 1/4 inch material, special for all machines, not w/conser-till
1шт.
13
810195C1
SHOVEL
SWEEP, 14 in., 1/4 in. material, for use on competition machines
1шт.
13
601988R3
SWEEP
14 inch, 5/16 inch material, special for all machines, not w/conser-till
1шт.
14
596625R1
SHOVEL
SWEEP, 15-1/2 inch high lift, special for all machines, Serial Range: prior-1973
1шт.
15
602592R3
TIP
SWEEP, 16 inch, 1/4 inch material, special for all machines
1шт.
15
810196C1
SHOVEL
SWEEP, 16 in., 1/4 in. material, for use on competition machines
1шт.
15
602207R3
TOOTH
SWEEP, 16 inch, 5/16 inch material, special for all machines, Serial Range: prior-1973
1шт.
16
599594R2
SWEEP, 16 inch w/left wing clipped, prior to 1973, for use on trail behind wing type and single wing models, not for use on direct mounted and 7 foot, 10 foot & 13 foot trail behind, not w/conser-till
1шт.
17
599595R2
SHOVEL
SWEEP, 16 inch w/right wing clipped, prior to 1973, for use on trail behind wing type and single wing models, not for use on direct mounted and 7 foot, 10 foot & 13 foot trail behind, not w/conser-till
1шт.
18
596626R1
SHOVEL
SWEEP, 17-1/2 inch high lift, special for all machines, Serial Range: prior-1973
1шт.
19
599596R1
SHOVEL
SWEEP, 17-1/2 inch high lift w/left wing clipped prior to 1973, for use on trail behind wing type and single wing models, not for use on direct mounted and 7 foot, 10 foot & 13 foot trail behind, not w/conser-till
1шт.
20
599597R1
SHOVEL
SWEEP, 17-1/2 inch high lift w/right wing clipped prior to 1973, for use on trail behind wing type and single wing models, not for use on direct mounted and 7 foot, 10 foot & 13 foot trail behind, not w/conser-till
1шт.
21
602593R3
TIP
SWEEP, 18 inch, 1/4 inch material, special for all machines
1шт.
21
810197C1
SHOVEL
SWEEP, 18 in. 1/4 in. material, for use on competition machines
1шт.
21
603891R3
SWEEP
18 inch, 5/16 inch material, special for all machines
1шт.
PO21281
PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5
BOLT, 1/2-13 x 1-3/4 no. 3 type 5 plow, for ground working tools over 3 inches on 32 inch high clearance shanks prior to 1979, two bolts required to attach each ground working tool
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 used per bolt 1/2"-13, G5
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 hex jam, 1 per bolt
1шт.
120384
WASHER,1/2"
LOCK, , 1 per bolt 1/2"
1шт.
604472R1
CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5
BOLT, 1/2-13 x 2 no. 3 type 5 plow, for ground working tools over 2 inch on 25 inch clearance shanks, two bolts required to attach each ground working tool
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 used per bolt 1/2"-13, G5
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 hex jam, 1 per bolt
1шт.
120384
WASHER,1/2"
LOCK, , 1 per bolt 1/2"
1шт.
602307R1
CARRIAGE BOLT,#3, 1/2" x 2 1/4"
BOLT, 1/2-13 x 2-1/4 no. 3 type 5 plow, for 2 inch ground working tools on 25 inch clearance shanks, for tools over 2 and 3 in. on 32 inch high clearance shanks, two bolts required to attach each ground working tool
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 used per bolt 1/2"-13, G5
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 hex jam, 1 per bolt
1шт.
120384
WASHER,1/2"
LOCK, , 1 per bolt 1/2"
1шт.
28158R1
CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5
BOLT, 1/2-13 x 2-1/2 no. 3 type 5 plow, for 2 in. tools on 32 H.C. shank, two bolts required to attach each ground working tool
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per bolt 1/2"-13, G5
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2 jam type 5, 1 per bolt
1шт.
120384
WASHER,1/2"
LOCK, , 1 per bolt 1/2"
1шт.
594242R1
BOLT,#3, 7/16" x 1 3/4"
7/16-14 x 1-3/4 type 5 no. 3 plow w/special head, for use w/I.H. Hamilton sweeps on Jeoffroy 22 inch and 32 inch shanks, massey, Thrash King, shanks, case and oliver chisel plow shanks, two bolts required to attach each ground working tool
1шт.
594243R1
PLOW BOLT,#3, 7/16" x 2 1/4"
BOLT, 7/16-14 x 2-1/4 type 5 no. 3 plow w/special head, for use w/I.H. Hamilton shovels and points on all current chisel plow on the market, two bolts required to attach each ground working tool
1шт.
598901R1
BOLT,#3, 7/16" - 14 x 2"
7/16-14 x 2 type 5 no. 3 plow w/special head, for use w/I.H. Hamilton shovels and points on all current chisel plows on the marked, two bolts required to attach each ground working tool
1шт.
20166R1
BOLT,Hex, 5/8" - 11 x 6", Gr 5
5/8-11 x 6 hex-hd, for 25 in. cushion clamp & shank, two bolts required to attach each ground working tool
1шт.
Выбрано товаров: 52
