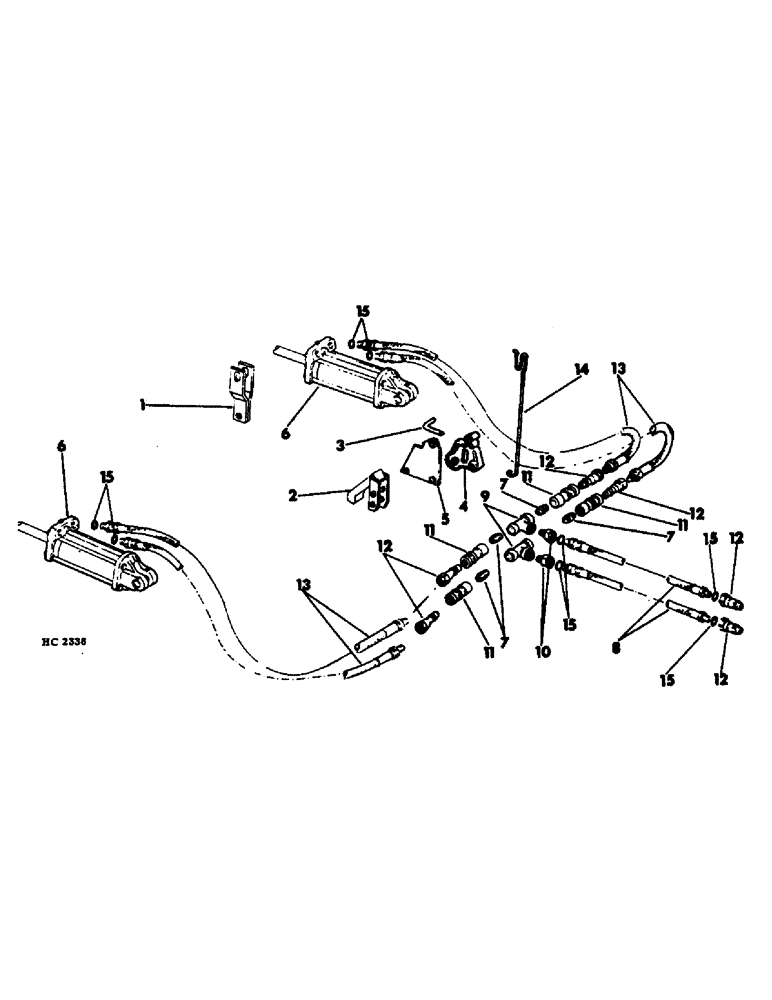

Запчасти Case IH 55 (D-15) - HYDRAULIC CYLINDER LIFT PARTS, FOR 16 FOOT AND 22 FOOT MODELS W/ DUAL HYDRAULIC BREAKAWAY CONNECTOR

1

608313R11

YOKE

ASSY, hydraulic locking

2шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, 3/4 x 2-1/16 std-hd-dld

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

2

811032C1

RETAINER

ASSY, hydraulic cylinder, replaces 526263R1

2шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3

602801R1

PIN

ROD, retainer locking

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

4

ANCHOR, hydraulic cylinder front, order 2-810266C2, bracket

2шт.

5

810266C2

BRACKET

hyd cyl front anchor, replaces 526263R1

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

6

403842R93

CYLINDER, 3.5 x 8 D.A. hyd 3000 PSI

2шт.

6

371292R95

CYLINDER

3.5 x 8 D.A. hyd 2500 PSI

2шт.

6

546719R91

CYLINDER

3.5 x 8 D.A. hyd 2500 PSI, order 1-61105C91, hyd cyl assy

2шт.

6

61105C91

CYLINDER

3.5 x 8 D.A. hyd 2500 PSI, for components refer to remote control hyd cyl

2шт.

7

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 inch pipe

4шт.

8

653323R91

HOSE, 1/2 inch x 45 inch long, recommended hydraulic parts

2шт.

9

138105

TEE,1/2" NPT, Fem

1/2 inch pipe

2шт.

10

461183R1

ADAPTER,1/2" - 14 ORB x 7/8" - 14 ORB

UNION, hydraulic adaptor

2шт.

11

395152R91

COUPLING

ADAPTOR, hyd female

4шт.

12

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

4шт.

12

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/359149R1, coupler, recommended hydraulic parts

4шт.

13

372437R91

HOSE

1/2 inch x 112 inch long hyd, for 22 foot duplexed machine

4шт.

13

630457R91

HOSE ASSY.

HOSE, 1/2 inch x 132 inch long hyd, for 22 foot duplexed machine

4шт.

14

651793R2

SUPPORT

flexible hyd hose

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler

8шт.
