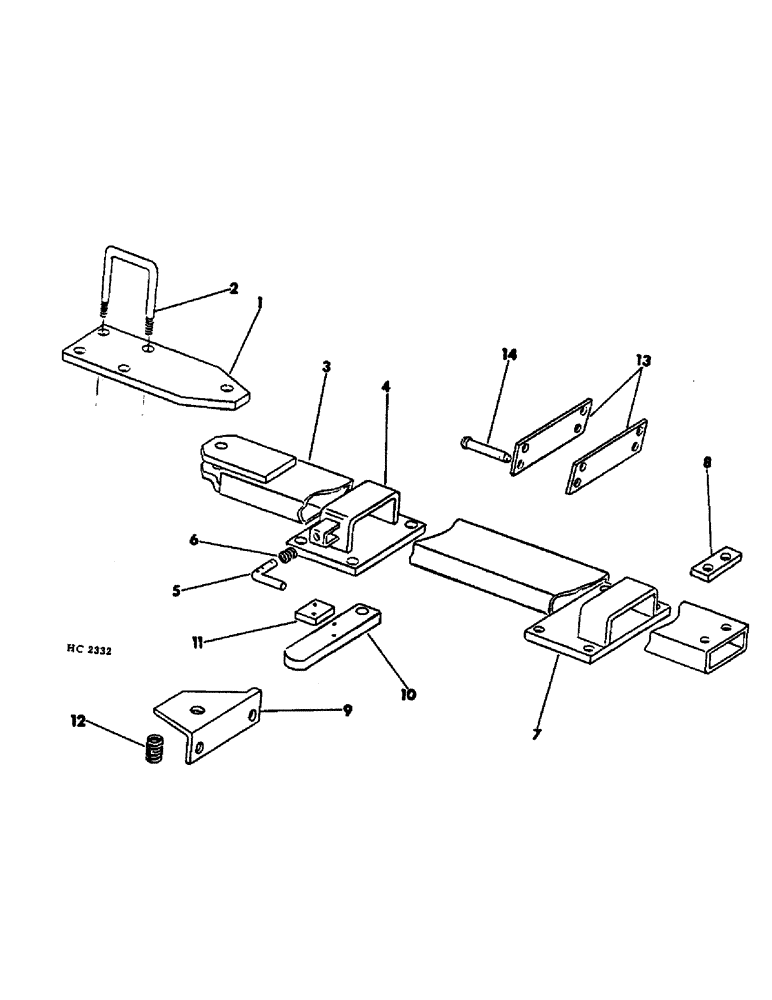

Запчасти Case IH 55 (D-12) - TRANSPORT UNIT
№
Артикул
Название
Примечание
Количество
1
608572R1
BAR, front frame draw beam connecting
1шт.
2
608294R1
U-BOLT,U, 5/8" - 11 x 134mm
connecting bar & bracket
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
12шт.
3
608573R11
BEAM ASSY, transport draw, 16 foot
1шт.
3
609423R11
BEAM ASSY, transport draw, 22 foot
1шт.
Q1394
PIN, 3/4 x 2-3/8 std-hd-dld
1шт.
591107R1
COTTER PIN
quick-attachable cotter
1шт.
4
608577R91
BRACKET ASSY, rear frame draw front
1шт.
5
608581R1
L-PIN, front bracket locating
1шт.
610784R1
SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL
PIN, quick-attachable
1шт.
6
PO22
SPRING
locating pin
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
350515R1
WASHER
.656 x 1.000 x .054
1шт.
7
608582R11
BRACKET ASSY, rear frame draw beam rear
1шт.
8
608576R1
BAR, draw beam stop
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
2шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 hex
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
9
608584R1
ANGLE, transport bumper bar
1шт.
18449R1
BOLT,Short NK, 5/8"-11 x 3", G2
5/8-11 x 3 carriage
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
10
608585R11
BAR ASSY, transport bumper, includes 1-602419R1, block and 2-104089, rivet
1шт.
271757
SPARE PART
BOLT, 5/8-11 x 4-1/4 hex-hd
1шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
5/8-11 hex jam
1шт.
11
602419R1
BLOCK, bumper bar stop
1шт.
104089
RIVET
1/4 x 1-1/2 sm-solid-bt-hd
2шт.
12
2258N
SPRING, transport bumper swivel bolt
1шт.
551177R1
WASHER
.656 x 1.250 x .054
1шт.
13
608586R1
BAR, rear stabilizer lockout
2шт.
280232
BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
14
608587R1
PIN, rear stabilizer lockout
1шт.
591107R1
COTTER PIN
quick-attachable cotter
1шт.
Выбрано товаров: 37
