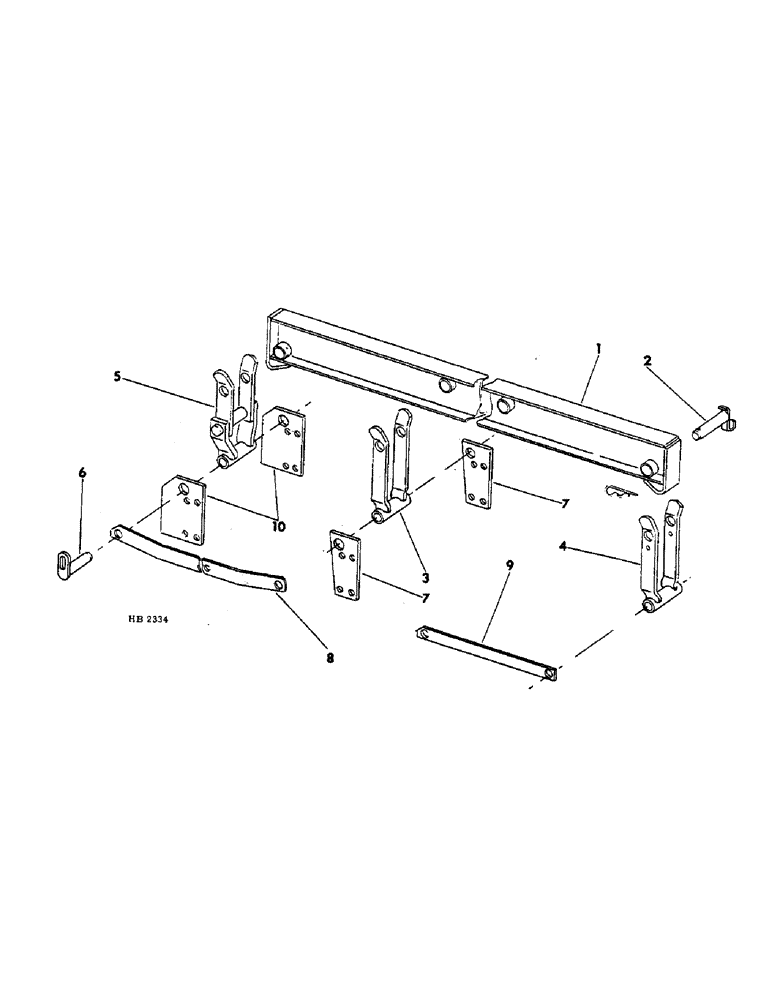

Запчасти Case IH 55 (D-11) - REAR STABILIZER UNIT

1

608544R91

BEAM ASSY, stabilizer cross

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-45 deg elbow lub

4шт.

2

608548R92

PIN ASSY, stabilizer beam pivot

4шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

119179

PIN, 3/16 x 1-7/8 cotter

2шт.

3

608551R91

PIVOT ASSY, inner rigid stabilizer, 16 foot regular clearance and 22 foot duplexed

2шт.

4

608552R91

PIVOT ASSY, outer rigid stabilizer, 16 foot high clearance machine

3шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-45 deg elbow lub

3шт.

5

608557R91

ADJUSTER ASSY, stabilizer

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-45 deg elbow lub

1шт.

6

608563R21

PIN ASSY, stabilizer plow pivot

4шт.

26631R1

BOLT, 5/8-11 x 6-1/4 hex-hd, 16 foot regular clearance and 22 foot duplexed

4шт.

20160R1

BOLT,3/8" x 6 7/8", Gr 8

5/8-11 x 6 hex-hd, 16 foot high clearance

2шт.

26631R1

BOLT, 5/8-11 x 6-1/4 hex-hd, 16 foot high clearance

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

608565R1

BAR, stabilizer anchor inner, 16 foot regular clearance and 22 foot duplexed

4шт.

18264R1

BOLT, 5/8-11 x 5-3/4 hex-hd

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

592236R1

BAR, stabilizer anchor inner, 16 foot high clearance

4шт.

18264R1

BOLT, 5/8-11 x 5-3/4 hex-hd

4шт.

26631R1

BOLT, 5/8-11 x 6-1/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

8

608556R1

SUPPORT, stabilizer locating LH

1шт.

9

608567R1

BAR, stabilizer locating RH

1шт.

26631R1

BOLT, 5/8-11 x 6-1/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

608568R1

BLOCK, stabilizer anchor outer

4шт.

18264R1

BOLT, 5/8-11 x 5-3/4 hex-hd

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
