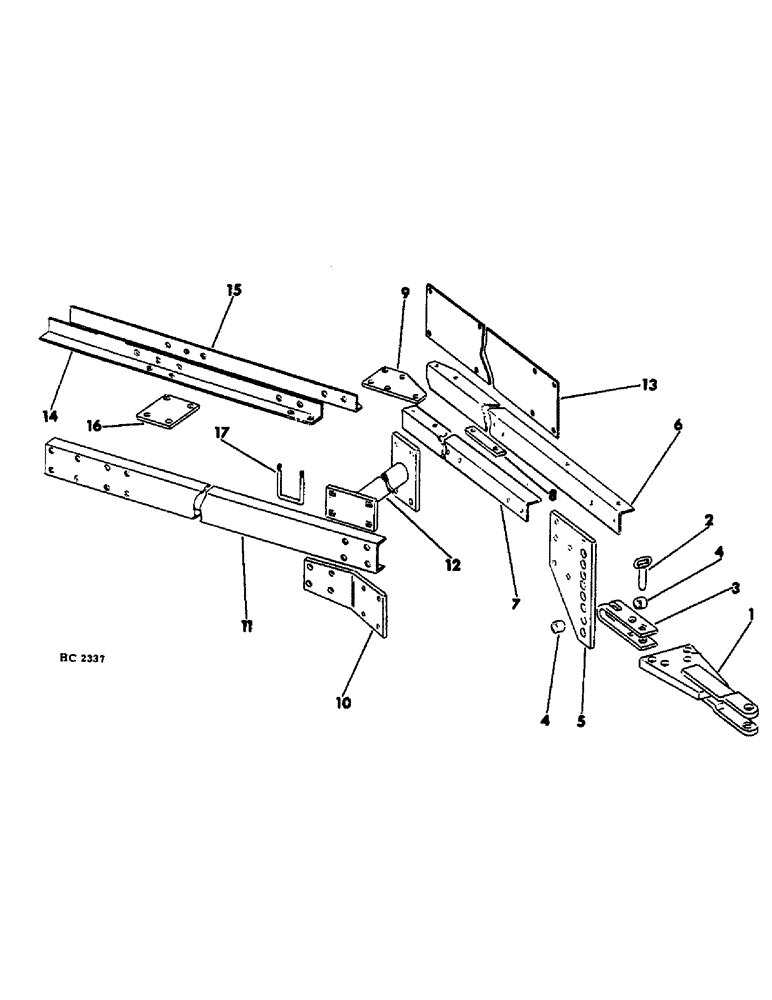

Запчасти Case IH 55 (D-10) - TRACTOR HITCH, 22 FOOT MODEL

1

609404R91

HITCH ASSY, duplex, regular

1шт.

1

609421R91

HITCH ASSY, duplex, special

1шт.

608517R1

BOLT, 1-8 x 4-1/4 hex-hd-dld

2шт.

427648

NUT

1-8 sltd-hex

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

2

608518R11

PIN ASSY, hitch

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

3

608519R1

CLEVIS, hitch

2шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1-8 x 4-1/2 hex-hd-dld

2шт.

427648

NUT

1-8 hex-sltd

2шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

4

608520R1

BUSHING

hitch clevis

4шт.

5

608521R1

PLATE, hitch

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

6

609406R1

ANGLE, hitch upper LH

1шт.

6

609407R1

ANGLE, hitch upper RH

1шт.

7

609408R1

ANGLE, hitch lower LH

1шт.

7

609409R1

ANGLE, hitch lower RH

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

609410R1

BAR, hitch angle spacer

2шт.

9

609411R1

BAR, hitch rear

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

609412R1

SUPPORT, hitch angle connecting LH

1шт.

10

609413R1

SUPPORT, hitch angle connecting RH

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 hex-hd

4шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

11

609414R1

CHANNEL, hitch centre

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

609415R91

BRACE ASSY, hitch tie LH

1шт.

12

609416R91

BRACE ASSY, hitch tie RH

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

609418R1

PLATE, hitch brace tie

2шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

609419R1

ANGLE, hyd-cyl mtg outer LH

1шт.

14

609420R1

ANGLE, hyd-cyl mtg outer RH

1шт.

15

609419R1

ANGLE, hyd-cyl mtg inner LH

1шт.

15

608540R1

ANGLE, hyd-cyl mtg inner RH

1шт.

16

608542R1

BLOCK, mounting angle rear clamping

2шт.

19702R1

BOLT (SPREADER)

BOLT, 5/8-11 x 5-3/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

17

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hyd cyl angle clamping

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.
