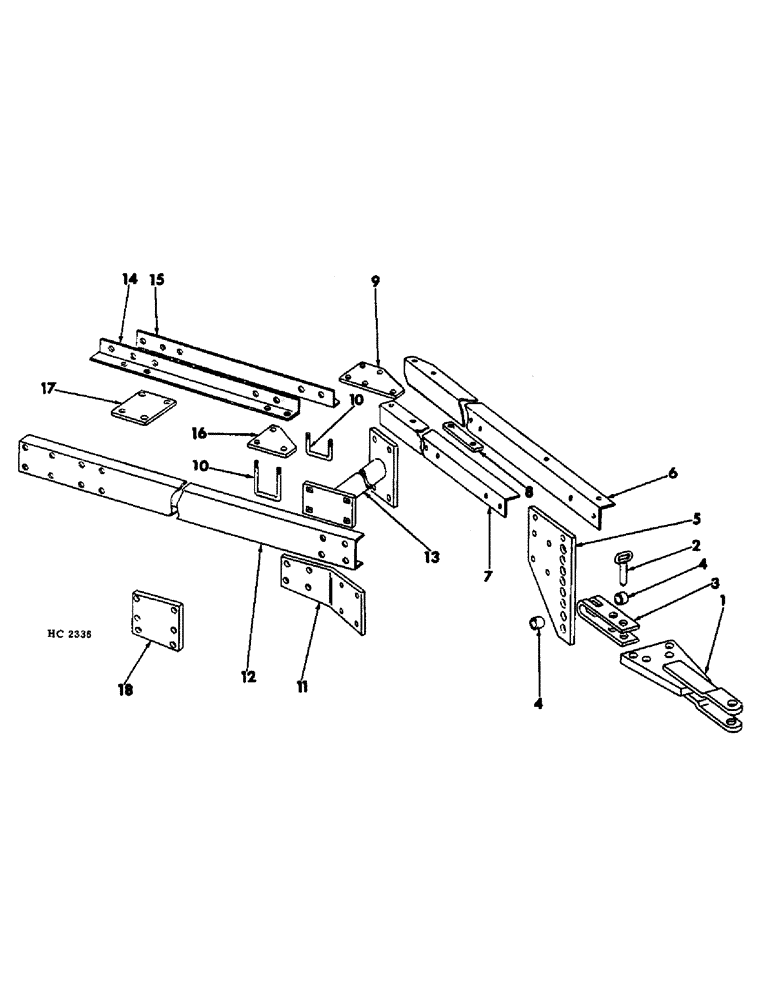

Запчасти Case IH 55 (D-08) - TRACTOR HITCH, 16 FOOT MODEL
№
Артикул
Название
Примечание
Количество
1
608514R91
HITCH ASSY, duplex, regular
1шт.
1
608569R91
HITCH ASSY, duplex, special
1шт.
608517R1
BOLT, 1-8 x 4-1/4 hex-hd-dld
2шт.
427648
NUT
1-8 sltd-hex
2шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
2шт.
2
608518R11
PIN ASSY, hitch
2шт.
591107R1
COTTER PIN
quick-attachable cotter
2шт.
3
608519R1
CLEVIS, hitch
2шт.
608605R1
BOLT,Hex, 1" - 8 x 4 1/2", Drilled
1-8 x 4-1/2 hex-hd-dld
2шт.
427648
NUT
1-8 hex-sltd
2шт.
Q3480
WASHER
1-1/32 x 1-1/2 x 11 ga
2шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
2шт.
4
608520R1
BUSHING
hitch clevis
4шт.
5
608521R1
PLATE, hitch
2шт.
271611
BOLT,Hex, 3/4" - 10 x 2", Gr 5
3/4-10 x 2 hex-hd
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
6
608522R1
ANGLE, hitch upper LH
1шт.
6
608523R1
ANGLE, hitch upper RH, regular clearance
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
6
592225R1
ANGLE, hitch upper LH
1шт.
6
592226R1
ANGLE, hitch upper RH, high clearance
1шт.
NLS
NO LONGER SERVICED
BOLT, 5/8-11 x 1-3/4 hex-hd
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
7
608524R1
ANGLE, hitch lower LH
1шт.
7
608525R1
ANGLE, hitch lower RH, regular clearance
1шт.
7
592227R1
ANGLE, hitch lower LH
1шт.
7
592228R1
ANGLE, hitch lower RH, high clearance
1шт.
20166R1
BOLT,Hex, 5/8" - 11 x 6", Gr 5
5/8-11 x 6 hex-hd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
8
608526R1
BAR, hitch angle spacer
2шт.
9
608527R1
BAR, hitch rear
2шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
BOLT, 5/8-11 x 1-3/4 hex-hd
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
10
608528R1
BOLT,U, 5/8" - 11 x 5.75"
U-BOLT, clamping long
2шт.
10
608294R1
U-BOLT,U, 5/8" - 11 x 134mm
clamping short
2шт.
10
608344R1
U-BOLT,U, 5/8" - 11 x 7"
not shown
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
11
608529R1
SUPPORT, hitch angle connecting LH
1шт.
11
608530R1
SUPPORT, hitch angle connecting RH, regular clearance
1шт.
11
592229R1
SUPPORT, hitch angle connecting LH
1шт.
11
592230R1
SUPPORT, hitch angle connecting RH, high clearance
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
4шт.
80280173
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5
3/4-10 x 2-3/4 hex-hd
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
8шт.
12
608531R1
CHANNEL, hitch centre, regular clearance
2шт.
12
592231R1
CHANNEL, hitch centre LH
1шт.
12
592232R1
CHANNEL, hitch centre RH, high clearance
1шт.
NLS
NO LONGER SERVICED
BOLT, 5/8-11 x 1-3/4 hex-hd, regular clearance
8шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
3/4 x 2 hex-hd, high clearance
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
8шт.
13
608533R91
BRACE ASSY, hitch tie LH
1шт.
13
608534R91
BRACE ASSY, hitch tie RH, regular clearance
1шт.
13
592233R91
BRACE ASSY, hitch tie LH
1шт.
13
592234R91
BRACE ASSY, hitch tie RH, high clearance
1шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
BOLT, 5/8-11 x 1-3/4 hex-hd
14шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
14шт.
14
608537R1
ANGLE, hyd-cyl mtg inner LH
1шт.
14
608538R1
ANGLE, hyd-cyl mtg inner RH
1шт.
15
608539R1
ANGLE, hyd-cyl mtg outer LH
1шт.
15
608540R1
ANGLE, hyd-cyl mtg outer RH
1шт.
19702R1
BOLT (SPREADER)
BOLT, 5/8-11 x 5-3/4 hex-hd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
16
608541R1
BLOCK, mounting angle front clamping
2шт.
22248R1
BOLT, 5/8-11 x 5-3/4 hex-hd
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
17
608542R1
BLOCK, mounting angle rear clamping
2шт.
19702R1
BOLT (SPREADER)
BOLT, 5/8-11 x 5-3/4 hex-hd
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
18
592237R1
BLOCK, frame extension, high clearance
1шт.
271724
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8-11 x 2-1/4 hex-hd
2шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
5/8-11 x 2-3/4 hex-hd
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
578274R1
WASHER
.656 x 1.000 x .105
4шт.
Выбрано товаров: 89
