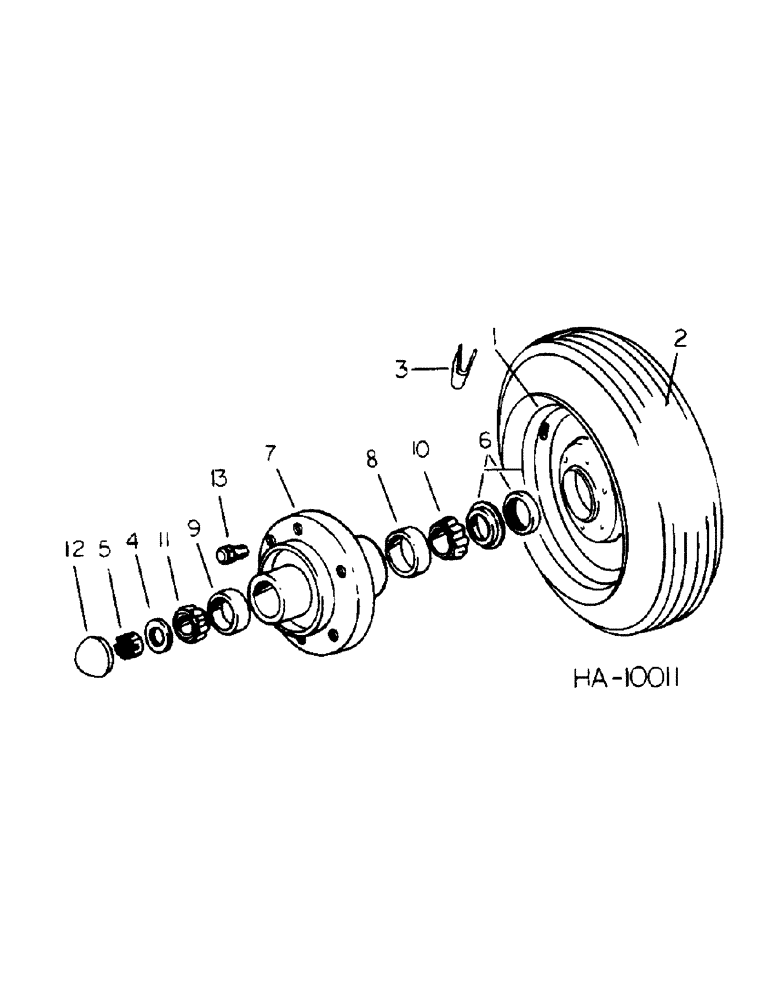

Запчасти Case IH 55 (D-07) - WHEEL AND HUB

1

622192R91

WHEEL

DISK & RIM ASSY, 15 x 5 KB

4шт.

2

TIRE AND TUBE, 7.60-15 x ply 1-1 rib implement tread

4шт.

3

811832C1

PACKAGE, tire valve guard service, includes 12 guards and 1, instruction pamphlet

1шт.

4

23071R1

WASHER

.906 x 2.000 x 164

8шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex-sltd-pln

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

6

606556R91

OIL SEAL

SEAL ASSY, oil

4шт.

7

606468R11

HUB

ASSY, wheel, includes 1-663558R1, cup and 1-651817R1, cup

4шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

4шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

4шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

4шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

4шт.

12

663906R1

CAP

wheel hub

4шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

24шт.
