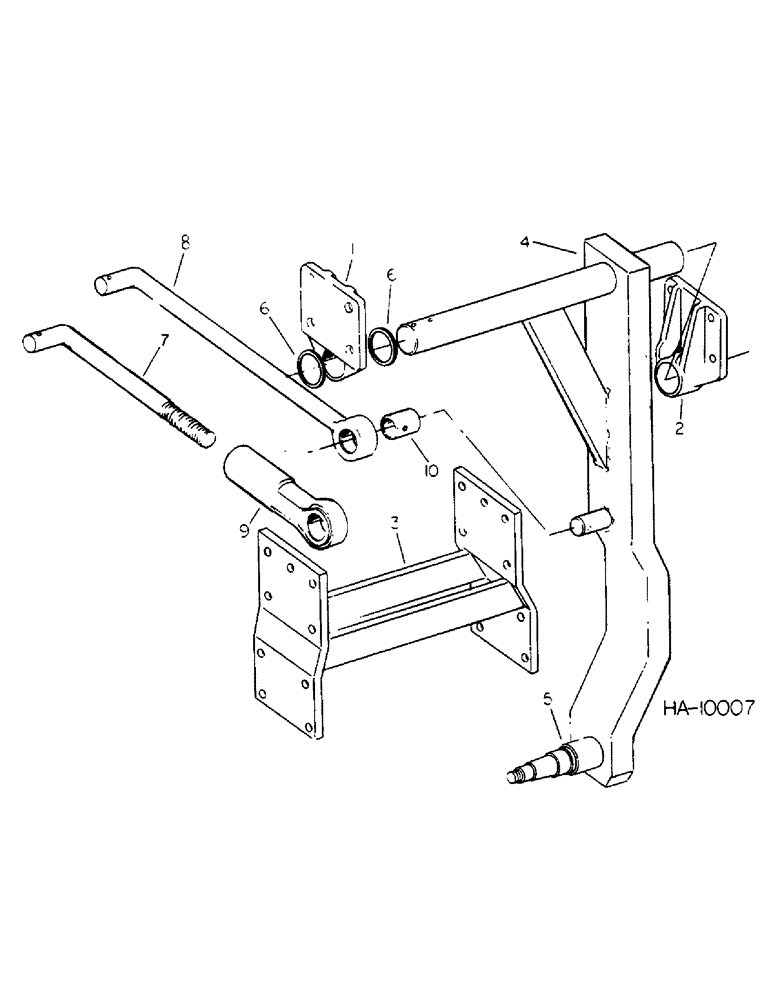

Запчасти Case IH 55 (D-06) - AXLE AND CONNECTIONS

1

608315R1

SUPPORT

axle long

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 hex-hd

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

608314R1

SUPPORT

axle short

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

609135R93

HANGER

ASSY, axle LH, 16 foot high clearance only

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

16шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

32шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

24шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

72шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

72шт.

4

608316R91

AXLE

ASSY, wheel, includes 1-608321R1, spindle

4шт.

108660

PIN,5/16" x 3"

Split (Cotter), 5/16" x 3"

8шт.

5

608321R1

SPINDLE

axle

4шт.

6

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

7

608324R1

BAR

ROD, lift adjustable, reg clearance

2шт.

7

609127R1

ROD

lift adjustable, high clearance machines only

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

8

608325R1

ROD, rigid lift, reg clearance

2шт.

8

609128R1

ROD

rigid lift, high clearance machines only

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

9

608322R1

EYE, lift link

2шт.

10

608323R1

BUSHING

lift rod

4шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

4шт.
