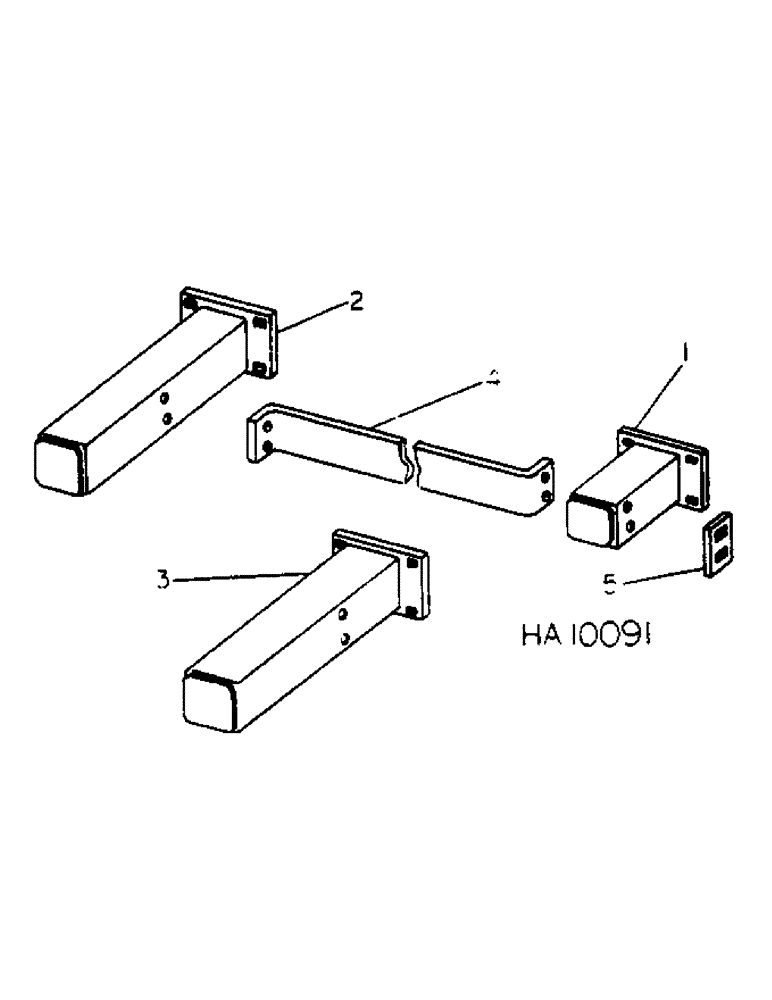

Запчасти Case IH 55 (D-05) - EXTENSIONS

1

608331R91

EXTENSION

ASSY, frame short

4шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

608332R92

EXTENSION

ASSY, frame long, machines must be equipped w/short frame extension

4шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8-11 x 3-1/4 carriage

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

NOT USED THIS APPLICATION

1шт.

4

608338R1

STRAP

extension connecting, machines must be equipped w/ 608332R92, extension assy long

4шт.

18728R1

BOLT, 5/8-11 x 6 type 1 carriage Short NK, 5/8"-11 x 6", G2

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

608339R1

BLOCK

BAR, extension clamping

8шт.

61907C1

DECAL

PRODUCT GRAPHIC, general warning, English

2шт.

71483C1

PRODUCT GRAPHIC

general warning, French

2шт.

71484C1

PRODUCT GRAPHIC

general warning, Spanish

2шт.

175311C1

REFLECTOR

safety red

2шт.

174732C1

REFLECTOR

safety amber

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
