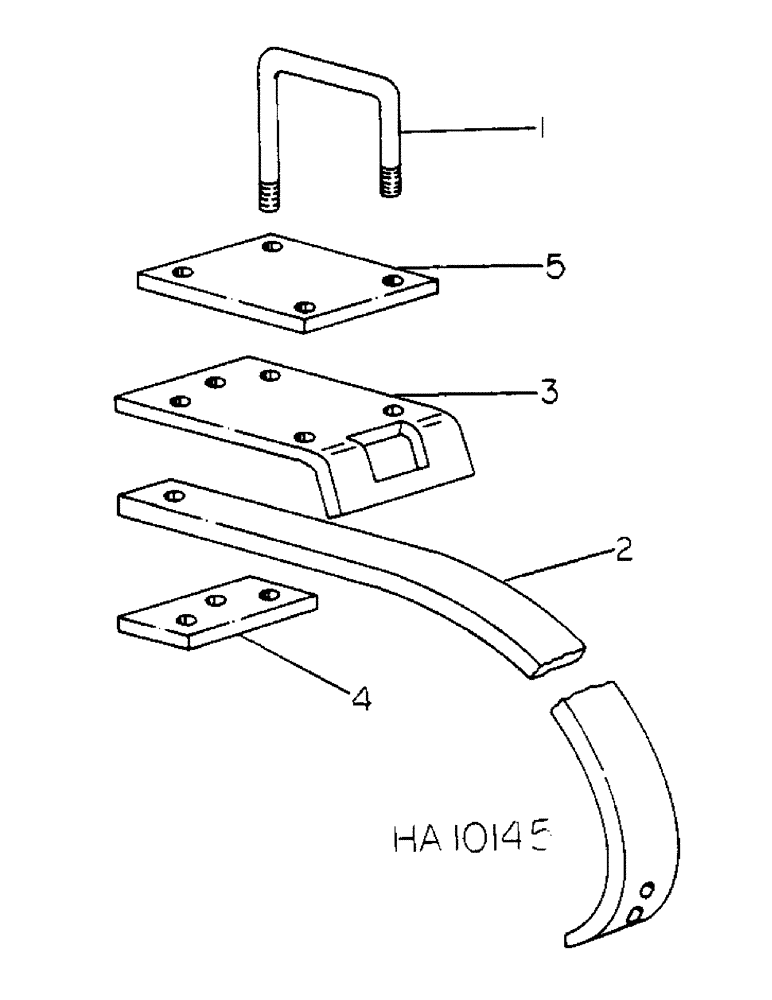

Запчасти Case IH 55 (A-03) - RIGID CLAMP AND SHANK

1

608344R1

U-BOLT,U, 5/8" - 11 x 7"

clamping bracket, prior to the 1969 season

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

608341R1

SHANK

25 inch clearance ground working tool, prior to the 1969 season

1шт.

REF#2 ANOTHER SHANK USED(NOT A SUB) 1284066C1 11/7/96

1шт.

2

598939R1

FINGER

SHANK, 25 inch clearance ground working tool, 1969 season and since

1шт.

2

609130R2

SHANK

32 inch clearance ground working tool

1шт.

3

608342R1

BRACKET

25 inch clearance shank clamping, prior to the 1969 season

1шт.

3

598938R1

BRACKET

25 inch clearance shank clamping, 1969 seaon and since

1шт.

3

609131R1

BRACKET

clamping 32 inch clearance

1шт.

4

608343R1

BAR

clamping bracket, prior to the 1969 season

1шт.

REF#4 608343R1 HAS 2 HOLES 11/7/96

1шт.

4

598937R1

BAR

clamping bracket, 1969 season and since

1шт.

REF#4A 598937R1 HAS 3 HOLES 11/7/96

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 hex-hd, for use on machine equipped w/25 inch shank

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, use w/25 in shank

1шт.

5

592239R1

BLOCK

clamping, 1969 season and since

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8-11 x 7-1/2 hex-hd, w/25 inch clearance shank

2шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8-11 x 8 hex-hd, w/32 inch clearance shank

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , w/32" clearance shank 5/8"

1шт.
