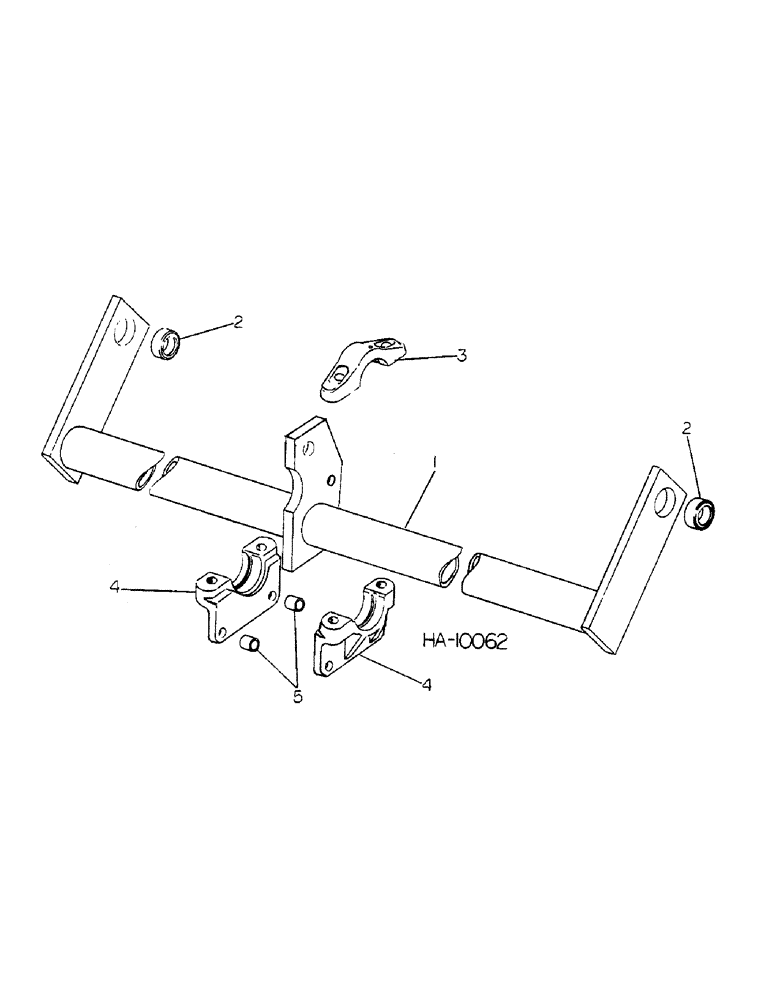

Запчасти Case IH 55 (D-03) - ROCKSHAFT

1

608302R91

ROCKSHAFT

ASSY, 16 foot model

2шт.

1

608303R91

ROCKSHAFT

ASSY, 22 foot model, includes 2-608310R1, bushing

2шт.

2

608310R1

BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L

outer arm

4шт.

3

608311R1

CAP

rockshaft bracket

8шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

8шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

4

608312R1

BRACKET

rockshaft

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

8шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

5

5528S

SPACER

rockshaft bracket

4шт.
