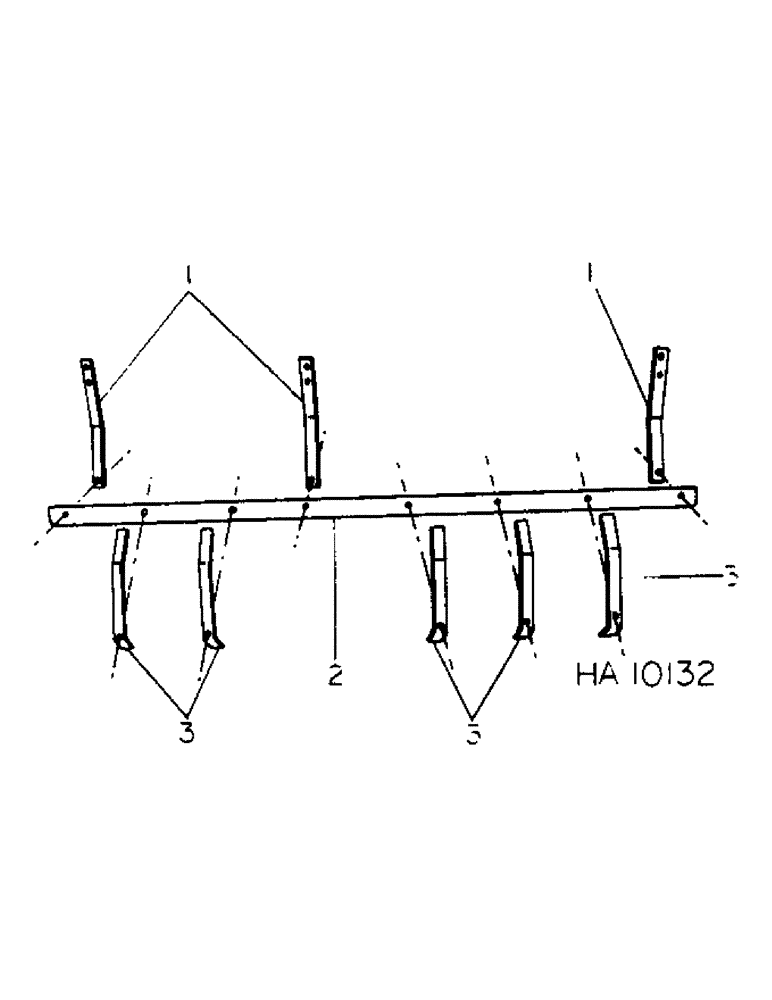

Запчасти Case IH 55 (C-22) - 55 CONSER-TILL TRASH BAR, 10 FOOT AND 13 FOOT MODELS

1

812392C1

SUPPORT

trash bar angle, 4-10 foot, 6-13 foot

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd, 2 bolts used per support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

2

812433C1

ANGLE

trash bar support 10 foot

2шт.

2

812390C1

ANGLE

trash bar support 13 foot

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd, 1 per support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

3

812393C1

SUPPORT, trash bar, 8-10 foot, 10-13 foot

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd, 1 per support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.
