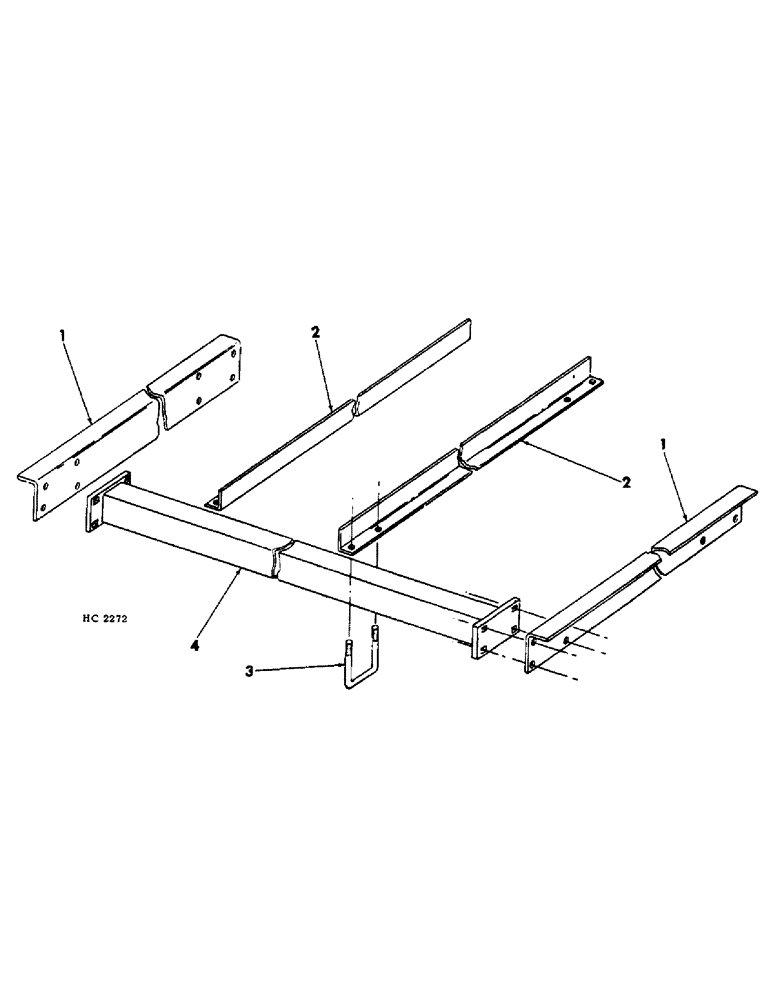

Запчасти Case IH 55 (C-19) - 55 CONSER-TILL FRAME, 10 FOOT AND 13 FOOT WITH REG. 25 INCH CLEARANCE SHANKS HEAVY DUTY HITCH CLEVIS

1

812387C1

ANGLE

outer support

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

812389C1

ANGLE, inner support

2шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

support angle & tube

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

4

811424C91

TUBE

ASSY, front support, 10 foot, replaces 812431C1

1шт.

4

811425C91

TUBE ASSY, front support, 13 foot, replaces 812411C1, includes 1-61907C1 product graphic

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, general warning

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
