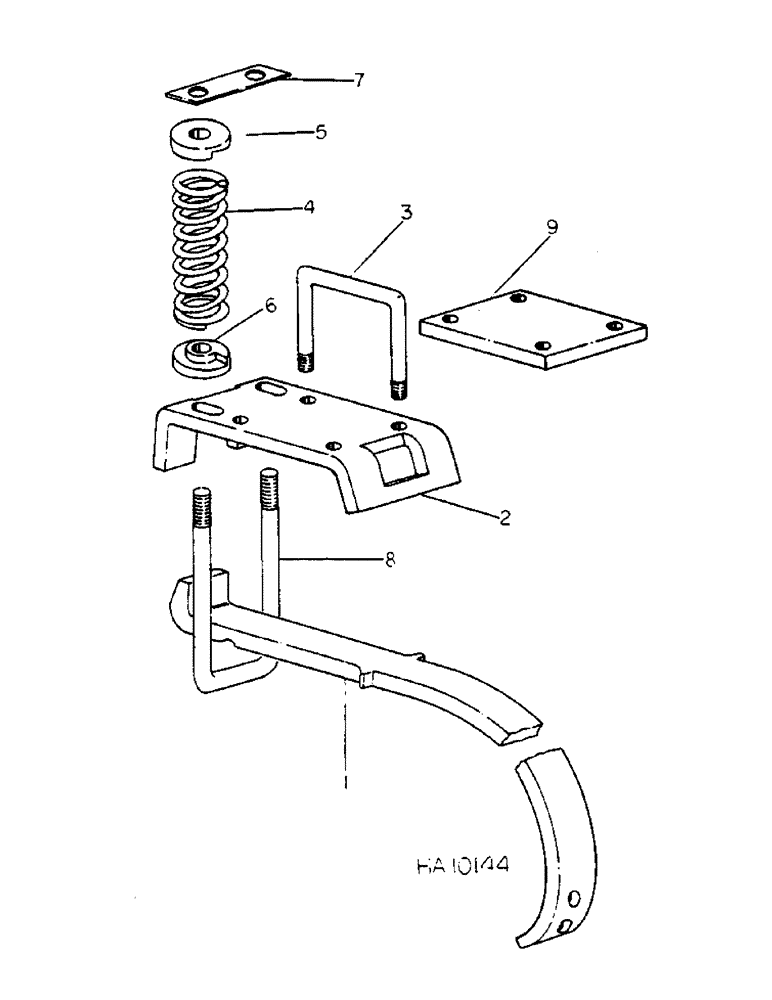

Запчасти Case IH 55 (A-02) - CUSHION CLAMP AND SHANK

1

608341R1

SHANK

25 inch clearance ground working tool

1шт.

REF#1 608341R1 ANOTHER SHANK USED(NOT A SUB)1284066C1 11/7/96

1шт.

1284066c1 is a different style and will reqire other parts to make work. See 485 Book

1шт.

1

609130R2

SHANK

32 inch clearance ground working tool

1шт.

2

608346R1

BRACKET

clamping 25 inch clearance

1шт.

2

609131R1

BRACKET

clamping 32 inch clearance

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

clamping bracket 25 inch clearance

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5 8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

608347R1

SPRING

cushion 25 inch clearance

2шт.

4

609133R1

VALVE SPRING

SPRING, trip 32 inch clearance

2шт.

5

608348R1

RETAINER

spring upper

2шт.

6

608349R21

RETAINER

PACKAGE, spring lower seat service, includes 2, lower seats

1шт.

7

591755R1

STRIP

BAR, spring tie

1шт.

8

602331R1

BOLT,U, 3/4" - 10 x 13.20"

U-BOLT, spring 25 inch clearance

1шт.

8

609132R1

U-BOLT,U, 3/4" - 10 x 14.6"

spring 32 inch clearance

1шт.

280954

NUT,3/4"-10, G5

2шт.

9

592239R1

BLOCK

shank clamping 32 inch clearance

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.
