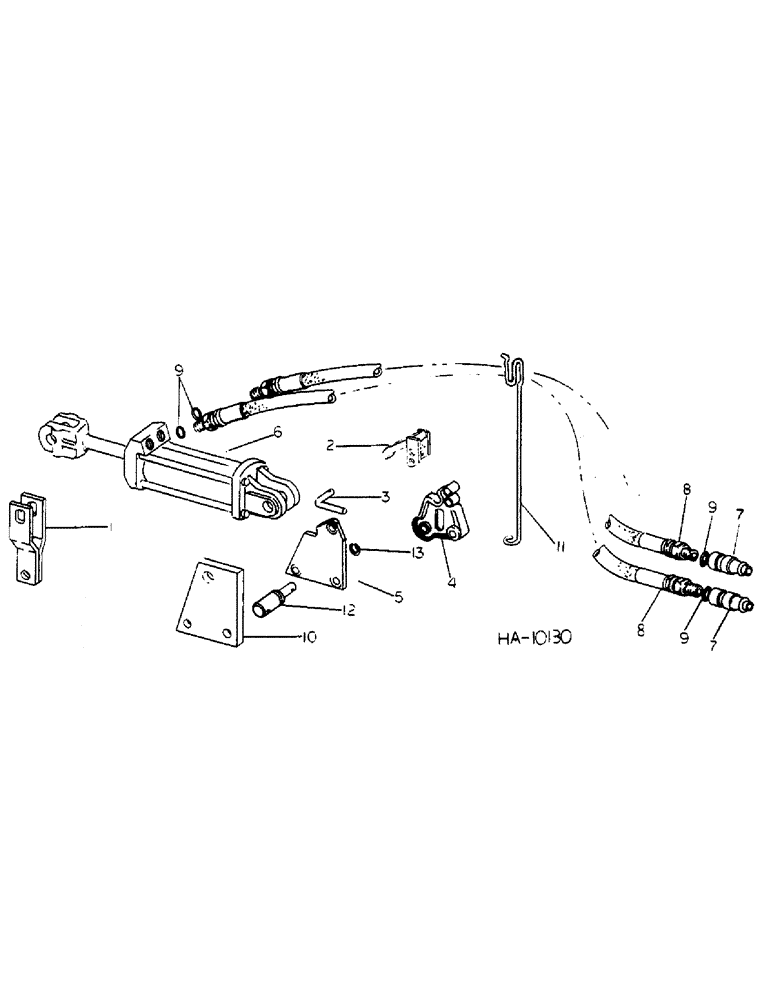

Запчасти Case IH 55 (C-14) - HYDRAULIC CYLINDER LIFT PARTS

1

608313R11

YOKE

ASSY, hydraulic locking

1шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, 3/4 x 2-1/16 std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

811032C1

RETAINER

ASSY, hyd cyl, replaces 526263C1

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

4

ANCHOR, hydraulic cylinder front, for service order 810266C2 bracket, prior to 1976 season

1шт.

5

810266C2

BRACKET

hyd cyl front anchor, 1976 season and since

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

403842R93

CYLINDER, 3-1/2 x 8 in D.A. hyd. 3000 PSI

1шт.

6

371292R95

CYLINDER

3-1/2 x 8 in D.A. hyd. 2500 PSI

1шт.

6

546719R91

CYLINDER

3-1/2 x 8 in D.A. hyd. 2500 PSI, prior to 1974 order cylinder 61105C91

1шт.

6

61105C91

CYLINDER

3-1/2 x 8 in D.A. hyd. 2500 PSI, 1974 season and since, for components refer to remote control hydraulic cylinder

1шт.

7

395149R1

QUICK MALE COUPLING

COUPLING, hose half male, opt w/544787R91, coupling

2шт.

7

544787R91

COUPLING, BREAK AWAY

COUPLING, hydraulic male, recommended hydraulic parts, opt w/395149R1, coupling

2шт.

8

372537R91

HOSE, 1/2 x 112 inch hydraulic, 7 foot model

2шт.

8

630457R91

HOSE ASSY.

HOSE, 1/2 x 132 inch hydraulic, 10 ft model not w/55 conser-till

2шт.

8

480663R91

HOSE ASSY.

HOSE, 1/2 x 168 inch hydraulic, 10 foot model w/55 conser-till

2шт.

8

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch hydraulic, 13 ft model not w/55 conser-till

2шт.

8

812416C1

HOSE, 1/2 x 185 inch hydraulic, 13 foot model w/55 conser-till, recommended hydraulic parts

1шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose coupling, recommeneded hydraulic parts

4шт.

10

812442C1

BAR, hyd cylinder anchor, 10 and 13 foot w/55 conser-till

1шт.

11

651793R2

SUPPORT

hydraulic hose

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

12

NOT USED THIS APPLICATION

1шт.

13

NOT USED THIS APPLICATION

1шт.
