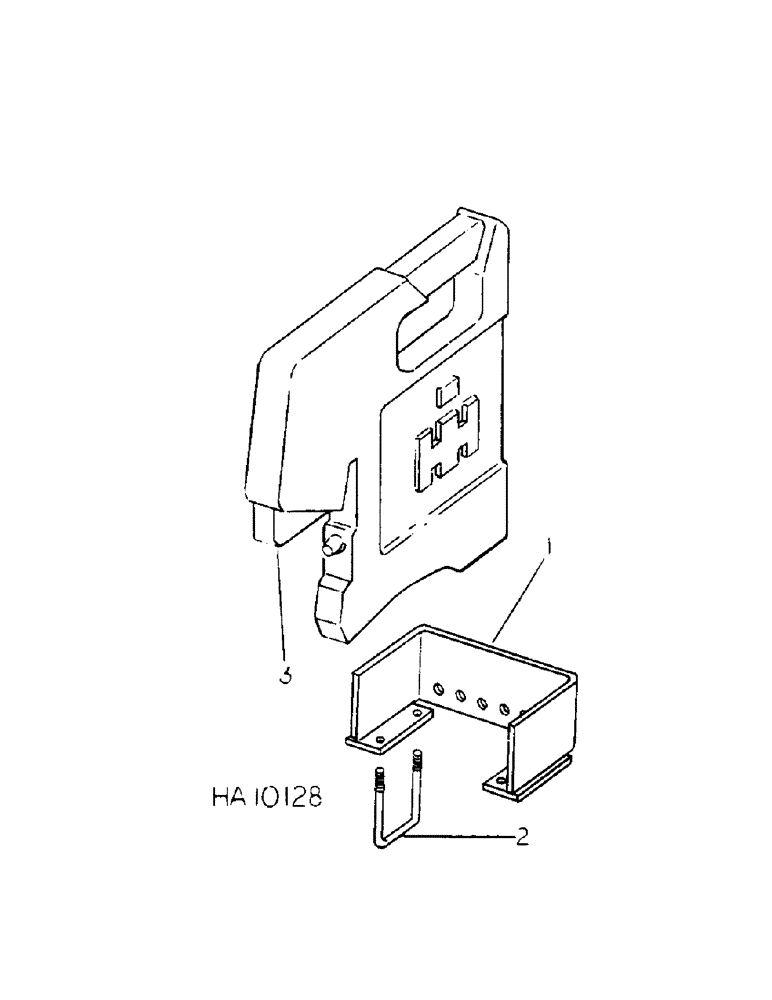

Запчасти Case IH 55 (C-12[A]) - CONSER-TILL FRAME WEIGHT SUPPORT

1

812445C1

SUPPORT

ASSY, weight

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

support mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

71200C1

WEIGHT

100 lbs, 8 used on 10 foot, 12 used on 13 foot

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd, 1 bolt used per weight

1шт.

125536

SQUARE NUT

1/2-13 square, 1 used per bolt

1шт.
