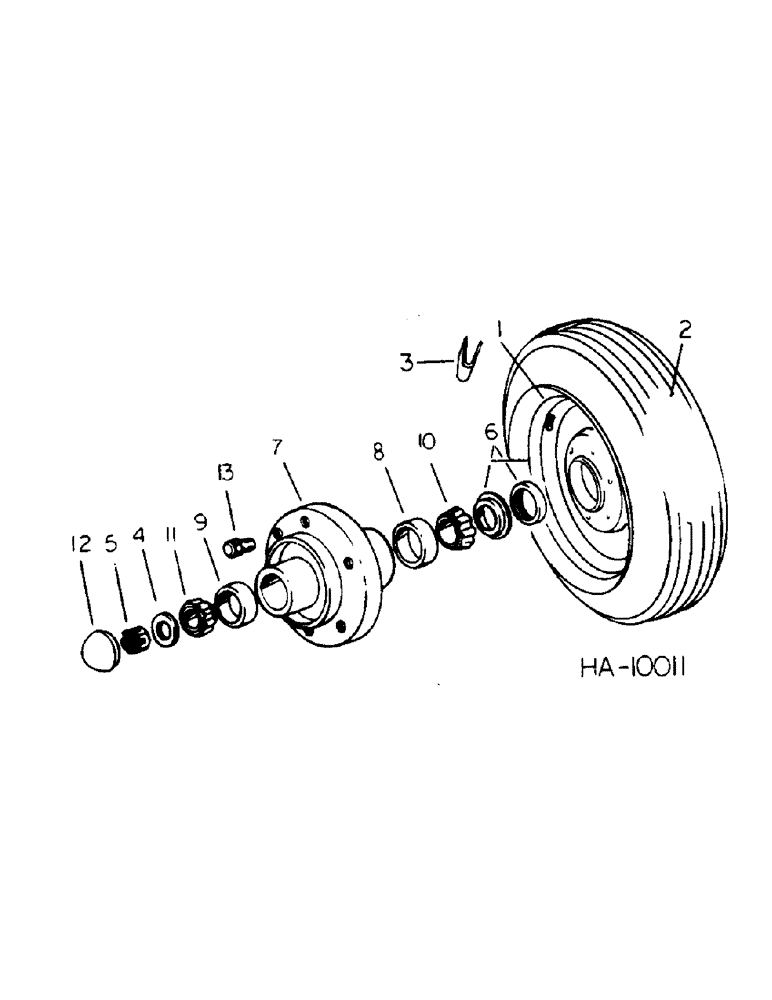

Запчасти Case IH 55 (C-11) - WHEEL AND HUB

1

622192R91

WHEEL

DISK & RIM ASSY, 15 x 5 KB

2шт.

2

TIRE, 7.60-15 6 ply 1-1 tubeless

1шт.

387897R91

VALVE STEM

VALVE, TR415

2шт.

3

811382C1

PACKAGE

tire valve guard service, includes 12 guards and one instruction 1-pamphlet

1шт.

4

23071R1

WASHER

.906 x 2.000 x .164

2шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex-sltd-pln

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

6

606556R91

OIL SEAL

SEAL ASSY, oil

2шт.

7

606468R11

HUB

ASSY, wheel, includes 1-663558R1, cup and 1-651817R1, cup

2шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

2шт.

12

663906R1

CAP

wheel hub

2шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

12шт.
