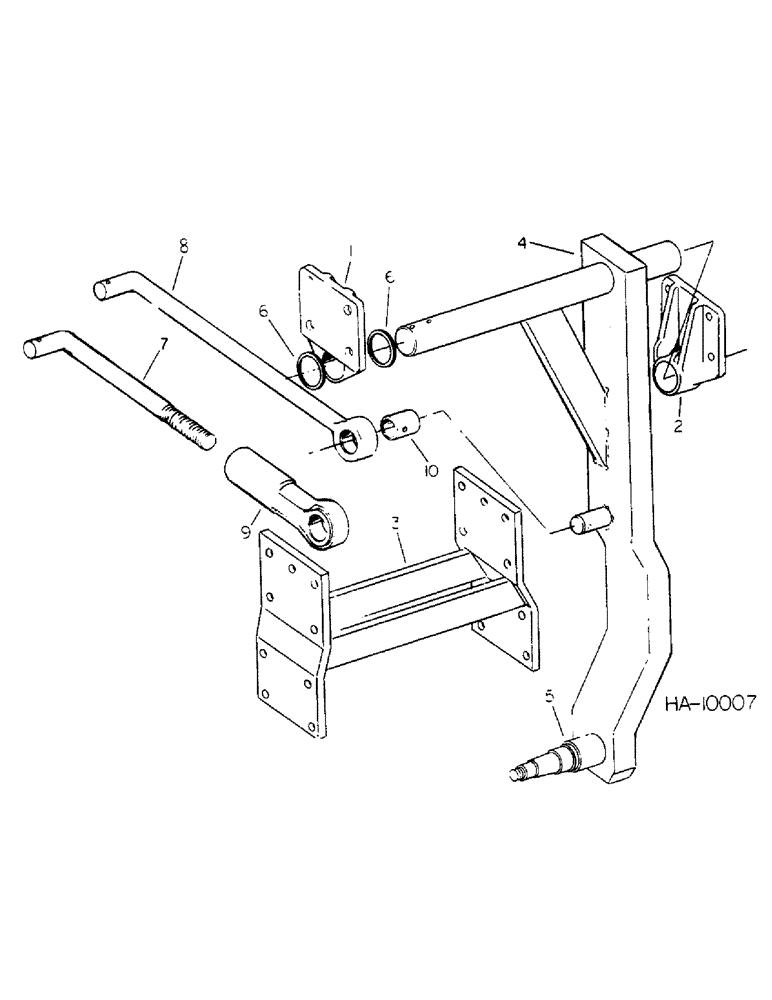

Запчасти Case IH 55 (C-10) - AXLE AND CONNECTIONS
№
Артикул
Название
Примечание
Количество
1
608315R1
SUPPORT
axle long
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
5/8-11 x 3 hex-hd
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
2
608314R1
SUPPORT
axle short
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
BOLT, 5/8-11 x 1-3/4 hex-hd
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
3
609135R93
HANGER
ASSY, axle, 10 foot and 13 ft high clearance
2шт.
NLS
NO LONGER SERVICED
BOLT, 5/8 x 1-3/4 type 5
8шт.
271728
SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5
5/8-11 x 3-1/4 hex-hd
8шт.
271723
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 x 2 hex-hd
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
32шт.
4
608316R91
AXLE
ASSY, wheel, includes 1-608321R1, spindle
2шт.
108660
PIN,5/16" x 3"
Split (Cotter), , not w/55 conser-till 5/16" x 3"
8шт.
23821R1
HEADED PIN,5/16" x 2.609"
PIN, HEADED, , 4 used to replace cotter pins in axle 608316R91, when 10 foot or 13 foot equipped w/55 conser-till 5/16" x 2.609"
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
5
608321R1
SPINDLE
axle
2шт.
6
22811R1
WASHER
2.031 x 2.750 x .067
8шт.
7
608324R1
BAR
ROD, lift adjustable, reg clearance
1шт.
7
609127R1
ROD
lift adjustable, high clearance
1шт.
8
608325R1
ROD, rigid lift, reg clearance
1шт.
8
609128R1
ROD
rigid lift, high clearance
1шт.
608700R1
WASHER
1.281 x 2.000 x .054
2шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
2шт.
9
608322R1
EYE, lift link
1шт.
10
608323R1
BUSHING
lift rod
2шт.
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
2шт.
20644R1
WASHER
1.656 x 2.250 x .054
2шт.
Выбрано товаров: 32
