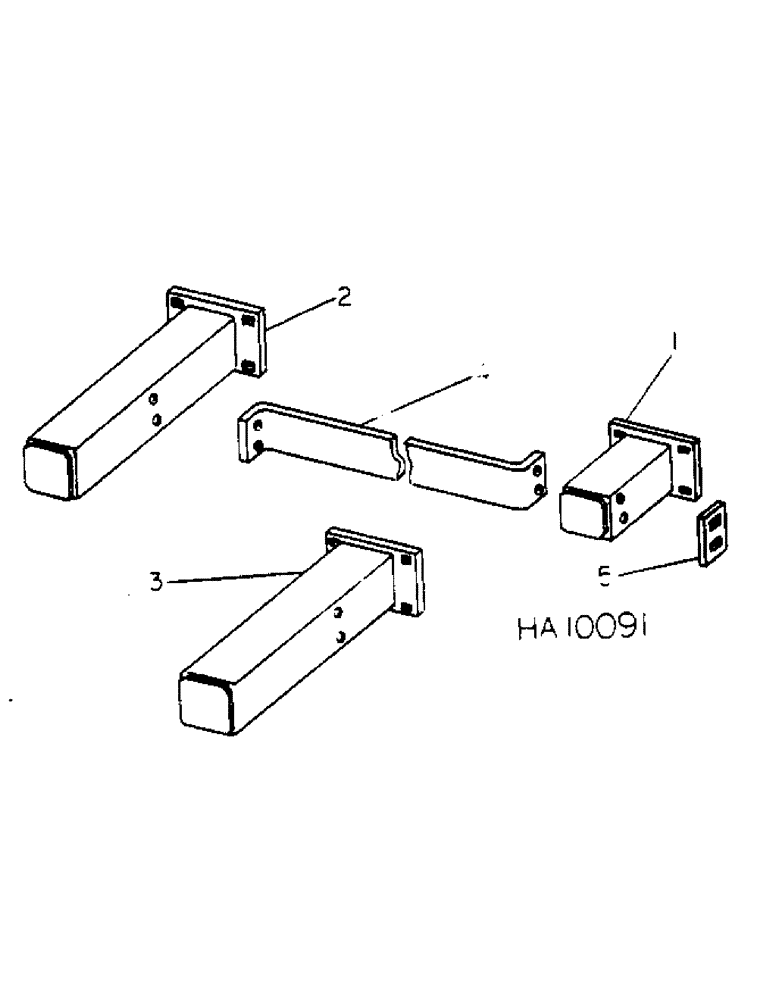

Запчасти Case IH 55 (C-09) - EXTENSIONS

1

608331R91

EXTENSION

ASSY, frame short

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

608332R92

EXTENSION

ASSY, frame long

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8-11 x 3-1/4 carriage

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

3

NOT USED THIS APPLICATION

1шт.

4

608338R1

STRAP

extension connecting, machine must be equipped w/608332R92, extension assy long

2шт.

18728R1

BOLT, 5/8-11 x 6 type 1 carriage Short NK, 5/8"-11 x 6", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608339R1

BLOCK

BAR, extension clamping, machine must be equipped w/608332R92, extension

4шт.
