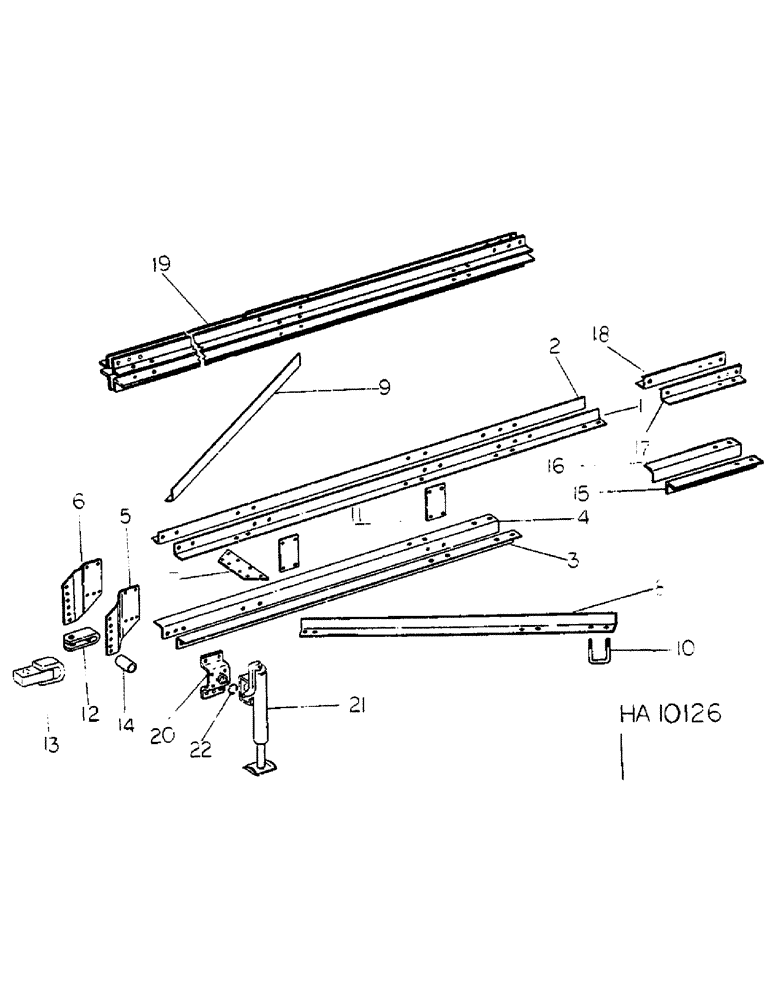

Запчасти Case IH 55 (C-08) - TRACTOR HITCH, 13 FOOT MODEL

1

608286R4

ANGLE

hitch centre upper LH, regular clearance, 55 conser-til prior to March 1977

1шт.

1

609121R1

ANGLE

hitch centre upper LH, high clearance

1шт.

2

608287R4

ANGLE

hitch centre upper RH, regular clearance, 55 conser-til prior to March 1977

1шт.

2

609122R1

ANGLE

hitch centre upper RH, high clearance

1шт.

3

608292R3

ANGLE

hitch centre lower LH, regular clearance, 55 conser-til prior to March 1977

1шт.

3

609123R1

ANGLE

hitch centre lower LH, high clearance

1шт.

4

608293R3

ANGLE

hitch centre lower RH, regular clearance, 55 conser-til prior to March 1977

1шт.

4

609124R1

ANGLE

hitch centre lower RH, high clearance

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608495R1

KNIFE SECTION

PLATE, hitch LH

1шт.

6

608496R1

ASSEMBLY

PLATE, hitch RH

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 hex-hd

5шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

7

608281R2

BAR

hitch angle connecting

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

3шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

8

608299R1

ANGLE

hitch support LH, regular clearance

1шт.

8

609125R1

ANGLE

hitch support LH, high clearance

1шт.

9

608300R1

ANGLE

hitch support RH, regular clearance

1шт.

9

609126R1

ANGLE

hitch support RH, high clearance

1шт.

10

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

hitch support angle

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

594853R1

BLOCK

BAR, hitch tie

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

608499R21

CLEVIS

ASSY, hitch, regular, prior to 1979 season

1шт.

12

597324R1

CLEVIS

heavy duty hitch, 1979 season and since

1шт.

13

605866R91

TOW BAR

TONGUE ASSY, heavy duty hitch, special, w/55 conser-till special heavy duty clevis must be used

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

9849633

NUT,1"-8, G5

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

14

597326R1

SPACER

hitch clevis

1шт.

15

812421C1

ANGLE, hitch extension lower LH

1шт.

16

812422C1

ANGLE, hitch extension lower RH

1шт.

17

812423C1

ANGLE, hitch extension upper LH

1шт.

18

812424C1

ANGLE, hitch extension upper RH, prior to March 1977, w/55 conser-till

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

2шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

21782R1

WASHER

.656 x 1.500 x .054

2шт.

19

812316C1

HITCH ASSY, March 1977 and since, w/55 conser-till

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

20

812434C2

SUPPORT ASSY, hitch jack, w/55 conser-till

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

21

810009C91

JACK

ASSY, hitch, w/55 conser-till

1шт.

22

24592R1

SNAP RING,#250, Ext

Ring, Snap, , jack, w/55 conser-till #250, Ext

1шт.
