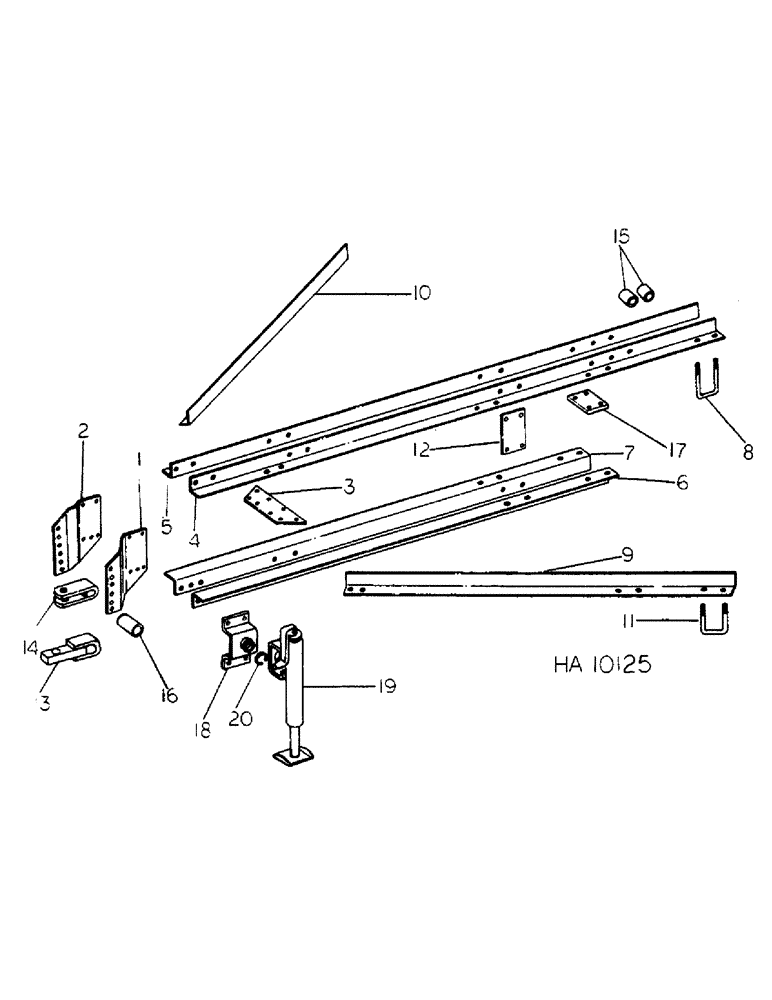

Запчасти Case IH 55 (C-06) - TRACTOR HITCH, 10 FOOT MODEL

1

608495R1

KNIFE SECTION

PLATE, hitch LH

1шт.

2

608496R1

ASSEMBLY

PLATE, hitch RH

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 hex-hd

5шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

3

608280R1

BAR

hitch angle connecting

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

3шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

124580

NUT, 5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

608284R3

ANGLE

hitch centre upper LH, regular clearance

1шт.

4

812681C1

ANGLE

hitch centre upper LH, high clearance

1шт.

5

608285R3

ANGLE

hitch centre upper RH, regular clearance

1шт.

5

812682C1

ANGLE

hitch centre upper RH, high clearance

1шт.

6

608290R2

ANGLE

hitch centre lower LH, regular clearance

1шт.

6

812683C1

ANGLE

hitch centre lower LH, high clearance

1шт.

7

608291R2

ANGLE

hitch centre lower RH, regular clearance

1шт.

7

812684C1

ANGLE

hitch centre lower RH, high clearance

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

center angle clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

608297R1

ANGLE

hitch support LH, regular clearance

1шт.

9

812679C1

ANGLE

hitch support LH, high clearance

1шт.

10

608298R1

ANGLE

hitch support RH, regular clearance

1шт.

10

812680C1

ANGLE

hitch support RH, high clearance

1шт.

11

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

hitch support angle

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

594853R1

BLOCK

BAR, hitch tie, high clearance only

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

605866R91

TOW BAR

TONGUE ASSY, heavy duty hitch, special, w/55 conser-till special heavy duty clevis must be used

1шт.

14

608499R21

CLEVIS

ASSY, hitch, regular, prior to 1979 season

1шт.

14

597324R1

CLEVIS

heavy duty hitch, 1979 season and since

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

9849633

NUT,1"-8, G5

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

15

5528S

SPACER

3/4 x .812 std pipe, w/55 conser-till

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

16

597326R1

SPACER

hitch clevis

1шт.

17

592239R1

BLOCK

BAR, hitch rear support, w/55 conser-till

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

812434C2

SUPPORT ASSY, hitch jack, w/55 conser-till

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

19

810009C91

JACK

ASSY, hitch, w/55 conser-till

1шт.

20

24592R1

SNAP RING,#250, Ext

Ring, Snap, , jack, w/55 conser-till #250, Ext

1шт.
