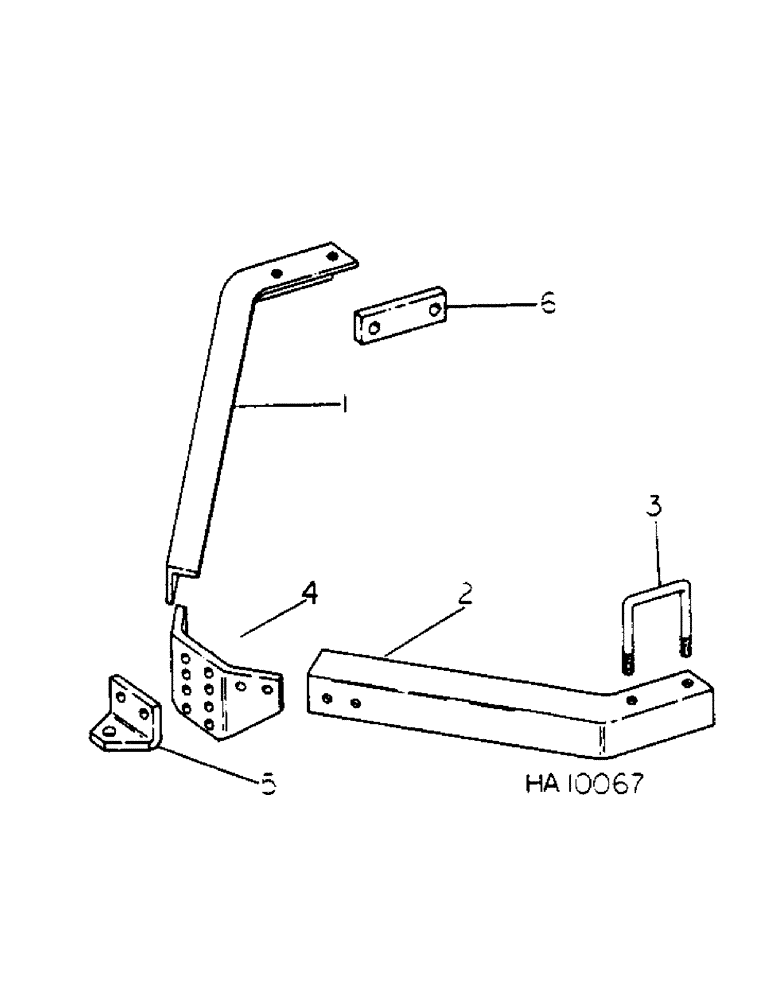

Запчасти Case IH 55 (C-03[A]) - TRAILING HITCH

1

598068R1

ANGLE, trailing hitch LH, for service 1967 season

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

1

598843R2

ANGLE

trailing hitch LH, for service 1968 and since

1шт.

2

598069R1

ANGLE, trailing hitch RH, for service 1967 season

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

598844R2

ANGLE

trailing hitch RH, for service 1968 and since

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

mounting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

4

598071R1

SUPPORT

hitch

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

5

598072R1

ANGLE

hitch

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

6

598070R1

BAR, clamping, for service 1967 season

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4-10 x 6 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.
