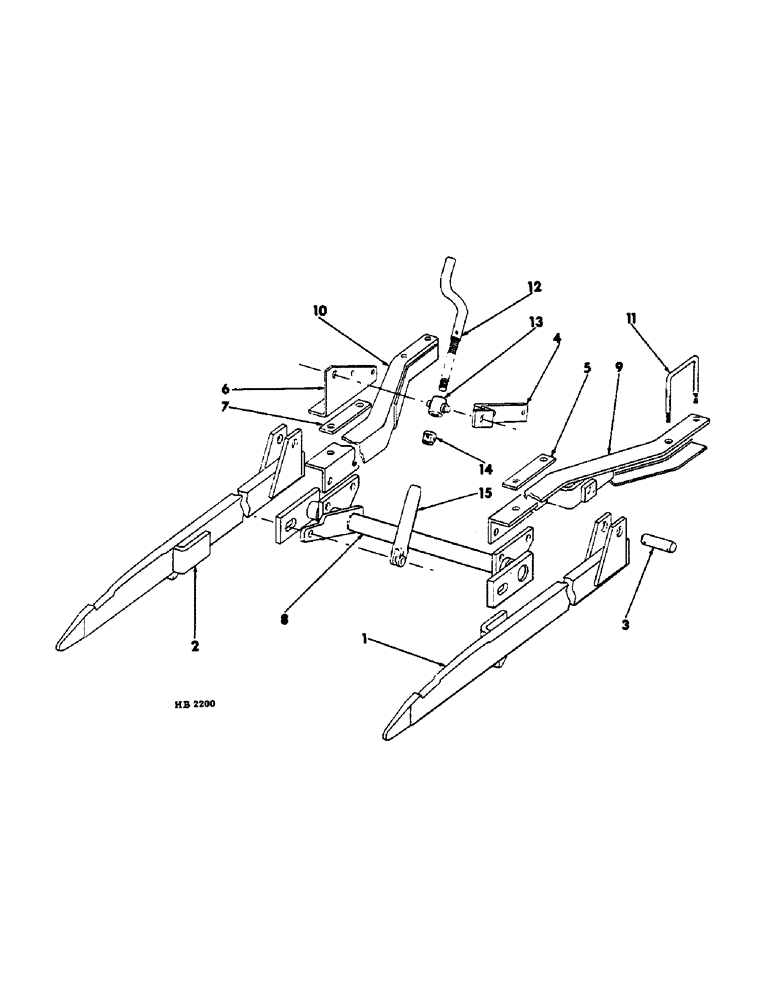

Запчасти Case IH 55 (B-14) - TWO POINT FAST HITCH, FOR 7 FOOT AND 11 FOOT TWO RANK MODELS, MACHINES PRIOR TO 1974 SEASON
№
Артикул
Название
Примечание
Количество
1
609886R91
BEAM ASSY, coupling LH
1шт.
2
609887R91
BEAM ASSY, coupling RH
1шт.
609891R1
HEADED PIN,1" x 3 1/4"
PIN, 1 x 3-3/4 std-hd-dld
2шт.
591715R1
WASHER
1.031 x 1.500 x .054
2шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
2шт.
3
609997R1
BAR, coupling beam pivot
2шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
4шт.
4
609892R1
STRAP, adjusting crank hammer
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2-13 x 1-1/2 hex-hd
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
5
609878R1
BAR, main frame angle clamping
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
6
609879R1
SUPPORT, adjusting screw
1шт.
7
609878R1
BAR, adjusting screw support
1шт.
21700R1
BOLT,Hex, 3/4" - 10 x 6 1/4", Gr 5
3/4-10 x 6-1/4 hex-hd
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
8
609880R91
ROCKSHAFT ASSY, hitch cross
1шт.
271771
HOUSING,Hex, 3/4" - 10 x 2", Gr 5
3/4-10 x 2 hex-hd
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
9
609874R91
SUPPORT ASSY, main frame LH
1шт.
10
609875R91
SUPPORT ASSY, main frame RH
1шт.
11
608294R1
U-BOLT,U, 5/8" - 11 x 134mm
main frame angle
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
12
591330R11
CRANK ASSY, adjusting
1шт.
112012
PIN, 1/8 x 1 straight
1шт.
13
9407
TYRE/TIRE
TRUNNION, adjusting crank
1шт.
14
9408
HYDRAULIC HOSE
COLLAR, adjusting crank stop
1шт.
3397N
PIN, 5/16 x 1-9/16 straight
1шт.
15
731135R1
NUT, adjusting crank
1шт.
H2808
HEADED PIN,5/8" x 2"
PIN, 5/8 x 2 std-hd-dld
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
Выбрано товаров: 37
