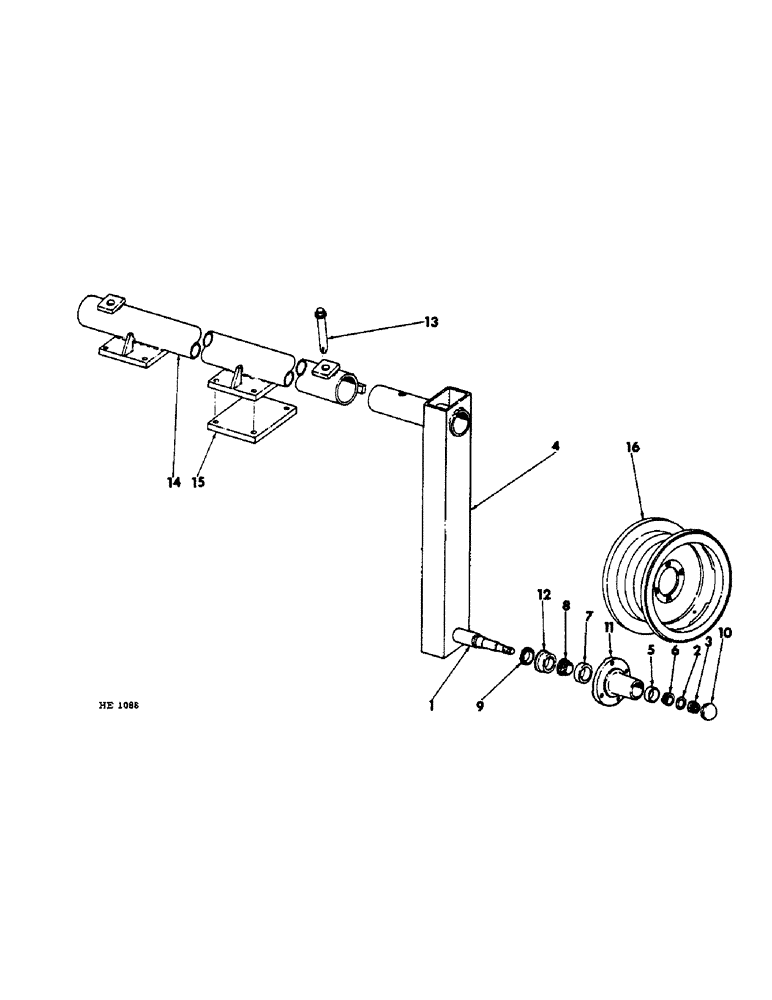

Запчасти Case IH 55 (B-12) - TRANSPORT WHEEL, 17 FOOT AND 21 FOOT TWO RANK ROW CROP, MACHINES BUILT PRIOR TO 1973 SEASON

1

599847R11

SPINDLE

ASSY, transport axle, includes 1-467750R1, washer, 1-427640, nut & 1-103396, pin

2шт.

2

467750R1

WASHER

.781 x 1.500 x .105

2шт.

3

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-sltd

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

4

599832R1

AXLE ASSY, transport wheel, includes 1-599847R11, spindle

2шт.

5

651814R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651817R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner bearing

2шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

591535R1

HUB

wheel

2шт.

12

472222R1

SLEEVE

oil seal wear

2шт.

13

599843R1

PIN ASSY, axle retaining

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

14

599826R1

TUBE ASSY, wheel support 30, 2.25" Length

1шт.

15

599828R1

BAR, tube support

2шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8-11 x 6-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

463036R1

WHEEL (STEERING)

DISK & RIM ASSY, 14 x 5 KB, also for use w/7.50 x 14 inch used auto tires

2шт.

16

490310R1

WHEEL

13 x 5 J, use w/13 inch used auto tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

8шт.
