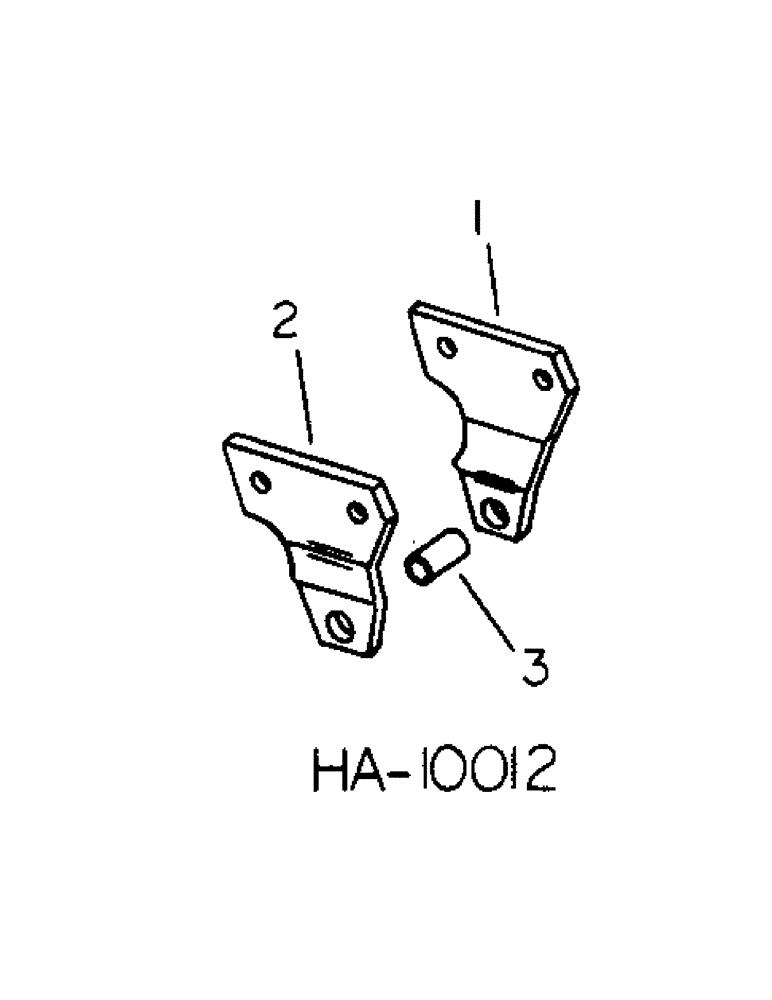

Запчасти Case IH 55 (B-11) - QUICK COUPLER HITCH ADAPTOR, ON MACHINES WITH THREE POINT HITCH ONLY, 7 AND 11 FOOT TWO RANK

1

597796R1

PLATE

adapting LH

1шт.

2

597797R1

PLATE

adapting RH

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1-8 x 6 hex-hd

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

3

597801R1

SPACER

BUSHING, adapting plate

1шт.

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

1-8 x 4-1/2 hex-hd

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.
