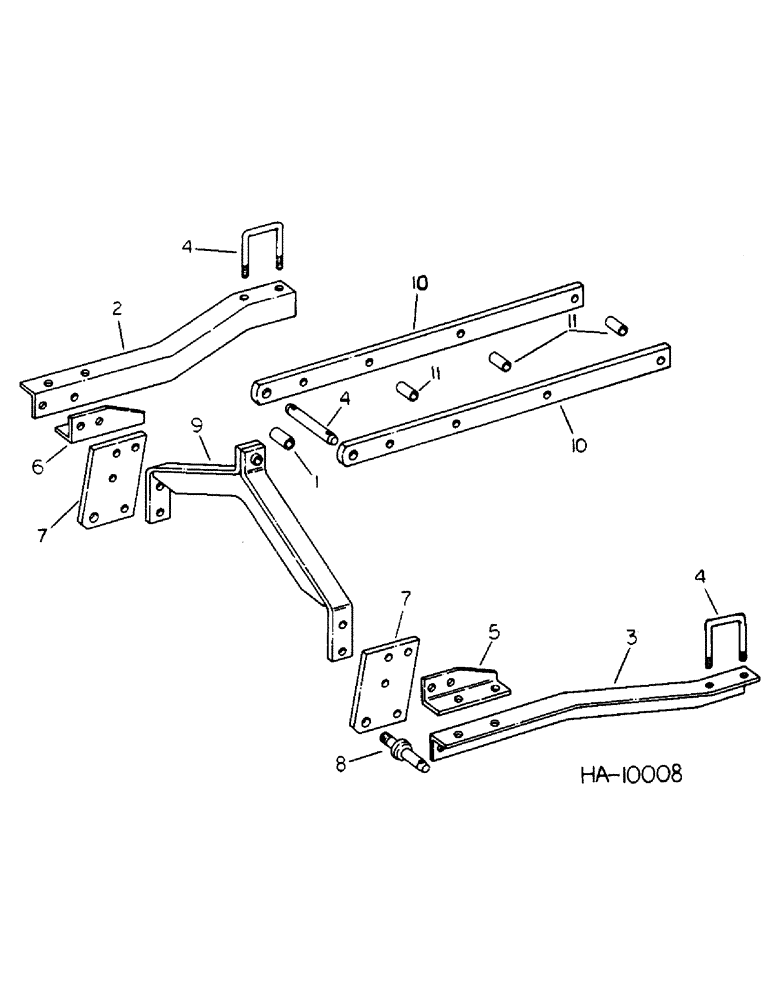

Запчасти Case IH 55 (B-10) - TRACTOR HITCH FOR 7 FOOT AND 11 FOOT 2 RANK, MACHINE WITH THREE POINT HITCH

1

PO27260

SPACER,1" Pipe x 2"

hitch connecting bar, 1967 and since

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4-10 x 6 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

608452R2

ANGLE

main frame cross LH

1шт.

3

608453R2

ANGLE

main frame cross RH

1шт.

4

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

cross angle clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

608454R1

ANGLE, hitch anchor LH, mach built prior to 1967 season

1шт.

17391R1

BOLT, 3/4-10 x 5-3/4 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

597799R1

ANGLE

hitch anchor LH, mach built 1967 season & since

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4-10 x 6 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

608455R1

ANGLE, hitch anchor RH, mach built prior to 1967 season

1шт.

17391R1

BOLT, 3/4-10 x 5-3/4 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

597800R1

ANGLE

hitch anchor RH, mach built 1967 season & since

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4-10 x 6 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

608456R1

BAR, hitch angle support, mach built prior to 1967 season

2шт.

271928

CONTROL

BOLT, 3/4-10 x 2 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

7

597798R1

BAR

hitch angle support, mach built 1967 season & since

2шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4-10 x 2 type 8 hex-hd

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 type 8 hex

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

8

472790R1

STUD

PIN, hitch block connecting

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 hex

2шт.

131049

HYD CONNECTOR

1-1/8 lock

2шт.

9

608457R91

TRAILER HITCH

HITCH ASSY

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4-10 x 2-1/4 type 8 hex-hd

2шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4-10 x 2-3/4 type 8 hex-hd

2шт.

22049R1

NUT,3/4"-10, G8

3/4-10 type 8 hex

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

608461R1

BAR, hitch connecting, mach built prior to 1967 season

2шт.

271937

BOLT, 3/4-10 x 4-1/4 hex-hd

3шт.

271940

GUIDE RING

BOLT, 3/4-10 x 5 hex-hd

1шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

810222C1

BAR

hitch connecting, mach built 1975 season & since, replaces 597795R1, 1967 to 1975 order 2, 810222C1

2шт.

NLS

NO LONGER SERVICED

BOLT, 3/4-10 x 4-1/2 hex-hd

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4-10 x 5 hex-hd

1шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

11

608460R1

SPACER

TUBE, hitch spacer, 3 used prior to 1975 season, 2 used 1975 season and since

1шт.
