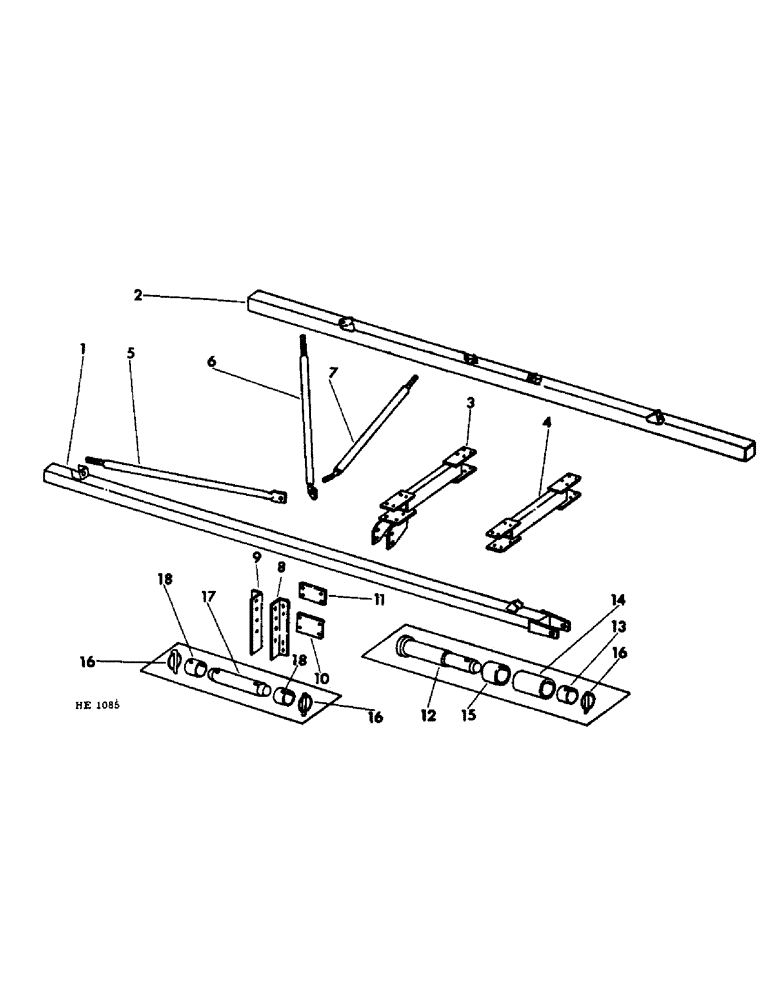

Запчасти Case IH 55 (B-09) - FRAME AND TRACTOR HITCH, 17 FOOT AND 21 FOOT TWO RANK ROW CROP, MACHINES BUILT PRIOR TO 1973 SEASON
№
Артикул
Название
Примечание
Количество
1
599763R2
BEAM ASSY, frame front, 17 foot model
1шт.
1
599765R1
BEAM ASSY, frame front, 21 foot model
1шт.
2
599764R1
BEAM ASSY, frame rear, 17 foot model
1шт.
2
599766R1
BEAM ASSY, frame rear, 21 foot model
1шт.
3
599774R2
CROSSMEMBER ASSY, frame inner
2шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
16шт.
4
599775R1
CROSSMEMBER ASSY, frame outer, 2 used 17 ft. 4 used 21 ft
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd, 16 used 17 ft. 32 used 21 ft
1шт.
5
599782R1
ROD, front truss, 17 ft model
2шт.
5
599783R1
ROD, front truss, 21 ft model
2шт.
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1-8 x 3 hex-hd, 1 per rod
1шт.
9849633
NUT,1"-8, G5
6 used 17 ft 1"-8, G5
1шт.
9849649
NUT,1 1/4"-7, G5
21 foot model 1 1/4"-7, G5
1шт.
6
599789R1
ROD, rear truss outer
2шт.
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1-8 x 3 hex-hd
2шт.
7
599788R1
ROD, rear truss inner
2шт.
8
599796R1
ANGLE, hitch centre LH
1шт.
9
599797R1
ANGLE, hitch centre RH
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
4шт.
10
599795R1
BAR, hitch centre angle support
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
4шт.
11
599798R1
BAR, hitch centre angle tie
1шт.
12
599799R1
PIN
hitch outer
2шт.
13
599800R1
BUSHING
hitch pin
2шт.
14
599801R1
SPACER
pin inner
2шт.
15
599802R1
SPACER
pin outer
2шт.
16
392181R91
PIN
ASSY, locking
2шт.
17
599803R1
PIN
hitch centre, for use on machines when tractor equipped w/three point hitch w/category 2 hitch
1шт.
17
392211R2
PIN
hitch centre, for use on machines when tractor equipped w/three point hitch w/category 3 hitch, for use on machines when tractor equipped w/category 2 or 3 hitch w/quick coupler
1шт.
18
599804R1
BUSHING
hitch pin, for use on machines when tractor equipped w/three point hitch w/category 2 hitch
2шт.
Выбрано товаров: 36
