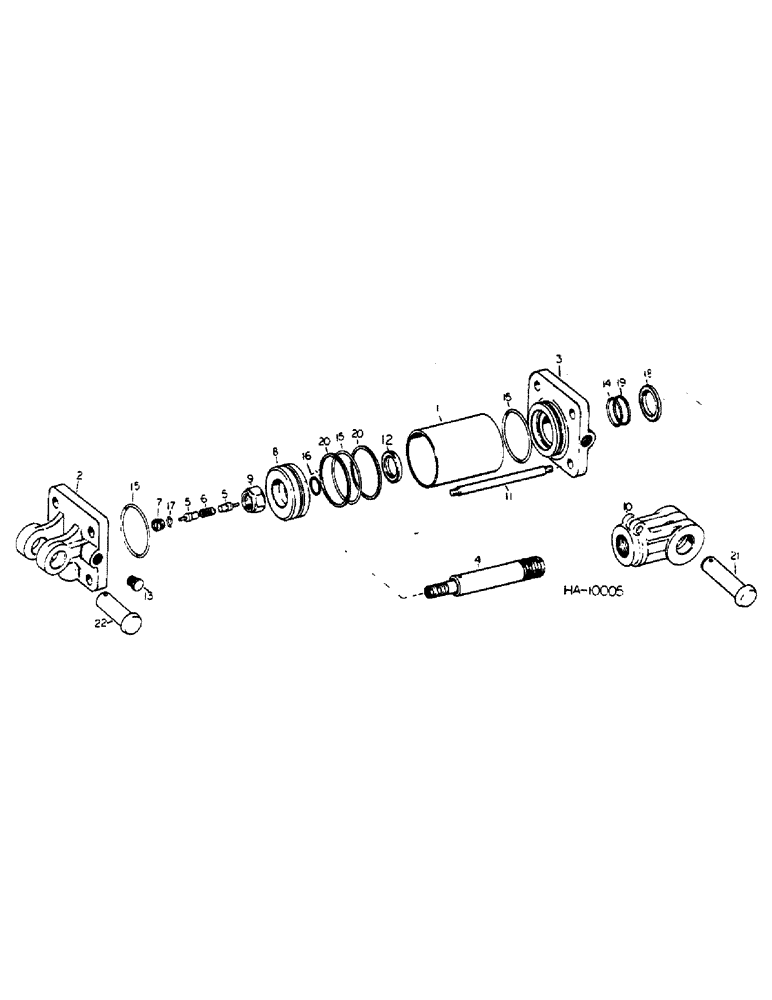

Запчасти Case IH 55 (J-27) - SLAVE HYDRAULIC CYLINDER, CROSS, RECOMMENDED HYDRAULICS

810184C91

CYLINDER

CYL ASSY, 3.75 x 8 D.A. hyd, cross, opt to use 1-813528C91, Cessna

1шт.

87423766R

REMAN-HYD CYLINDER

3.75 x 8

1шт.

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

1

811121C1

TUBE,3.75" ID, 4.25" OD

cylinder body

1шт.

2

811122C1

CLEVIS

cylinder base

1шт.

3

811124C1

END

cylinder

1шт.

4

811131C1

ROD

cylinder piston

1шт.

5

812604C1

VALVE

piston rod poppet

1шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

811132C1

PISTON

cylinder

1шт.

9

24568R1

NUT,1"-14, GB

1-14 hex lock

1шт.

10

812266C1

CLEVIS

rod end

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

811133C1

ROD

cylinder tie

4шт.

425-110

5/8-NF type 5

8шт.

12

811114C1

COLLAR

piston rod

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1.375 x 1.500 x .125

1шт.

15

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3.375 x 3.750 x .188

3шт.

16

NOT USED THIS APPLICATION

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, poppet valve

1шт.

18

SEAL, wiper oil, not serviced separately, for service order 1-811120C91 kit

1шт.

19

WASHER, piston rod O-ring back-up, not serviced separately, for service order 1-811120C91 kit

1шт.

20

WASHER, piston rod O-ring back-up, not serviced separately, for service order 1-811120C91 kit

1шт.

21

812171C1

PIN

rod clevis

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

22

811134C1

PIN

base clevis

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

811120C91

SEAL KIT

hyd cyl seal, consists of ref nos 14 thru 20

1шт.
