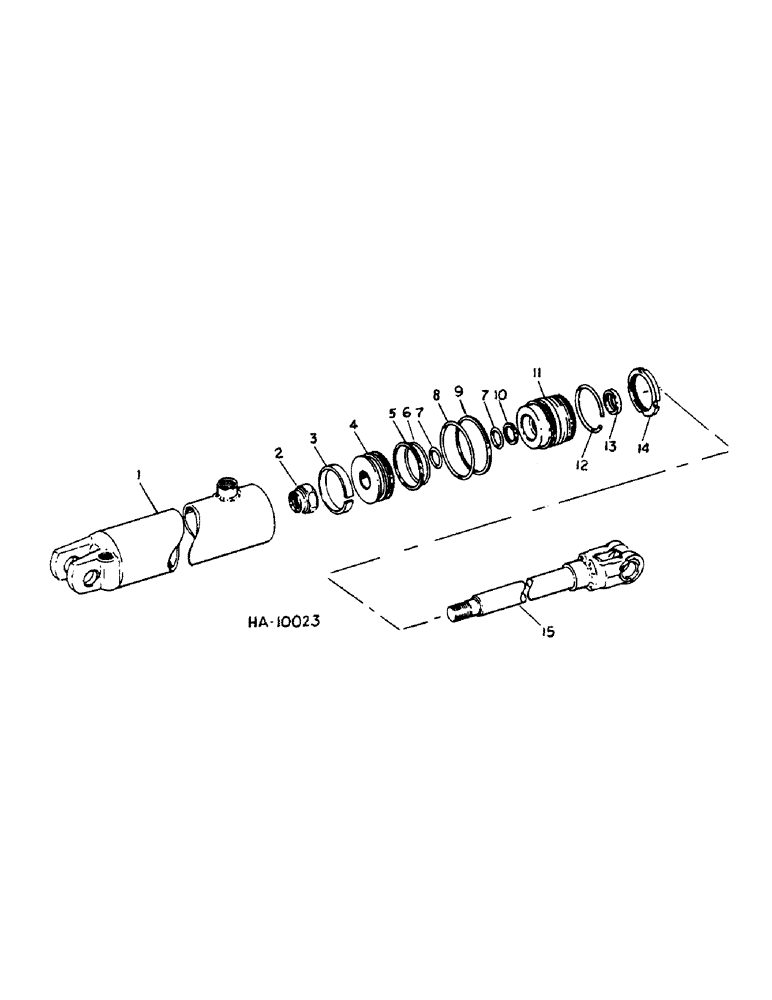

Запчасти Case IH 55 (J-26) - SLAVE HYDRAULIC CYLINDER, CESSNA

813528C91

CYLINDER

ASSY, slave hydraulic, 3.75 x 8 inch double acting, opt to use 1-810184C91, cross

2шт.

1

812296C1

BODY, cylinder

1шт.

2

26076R1

LOCK NUT,1 1/8"-12, GB

NUT, 1-1/8-12 hex lock

1шт.

3

RING, cylinder piston wear, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

4

812299C1

PISTON

cylinder

1шт.

5

RING, 3-3/4 O.D. teflon slipper, not serviced separately, order 1-812300C91, seal kit

1шт.

6

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

3.375 x 3.625 x .125

1шт.

7

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

1.375 x 1.625 x .125

2шт.

8

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3.50 x 3.750 x .125

1шт.

9

WASHER, O-ring back-up, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

10

WASHER, 1/8 x 1-3/8 O-ring back-up, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

11

812297C1

END

cylinder bearing

1шт.

12

RING, .130 x 3.94 O.D. lock, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

13

SEAL, piston rod shaft, not serviced separately, for service order 1-812300C91, seal repair kit

1шт.

14

812298C1

PLATE

bearing end

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 flange lock

2шт.

15

812121C1

ROD

cylinder piston

1шт.

812300C91

SEAL KIT

seal repair, consists of ref nos 3, 5 thru 10, 12 and 13

1шт.
