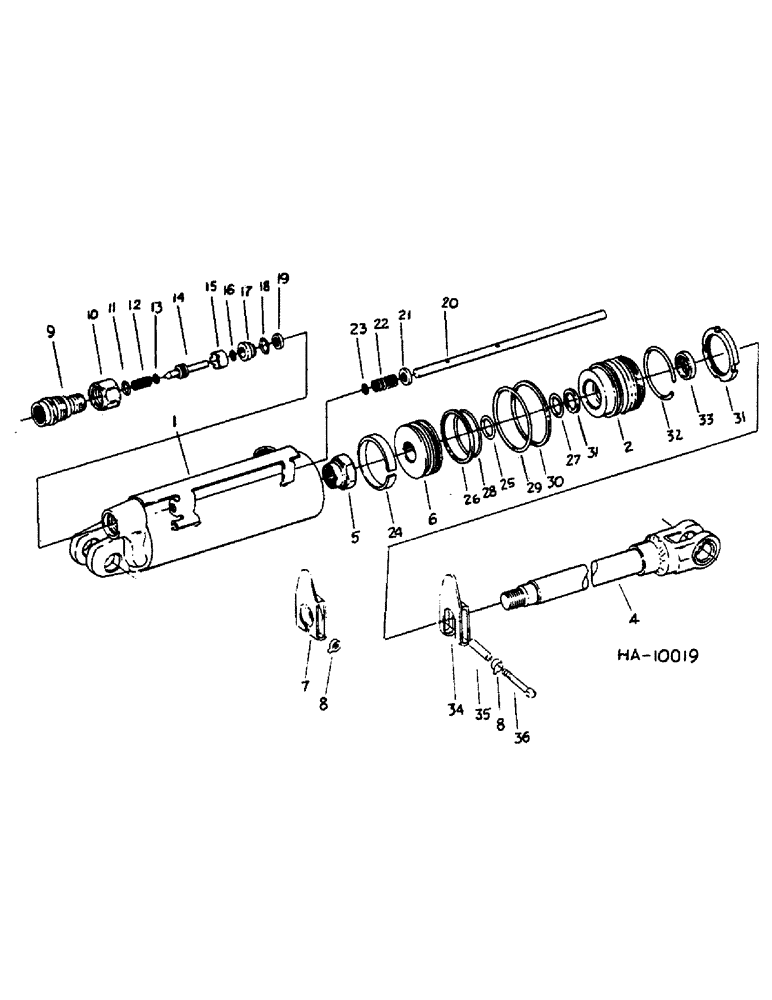

Запчасти Case IH 55 (J-24) - MASTER HYDRAULIC CYLINDER, CESSNA

810185C91

CYLINDER

ASSY, master hydraulic, 4.0 x 8 inch double acting, opt w/810182C91, cross

2шт.

1

810057C1

BODY ASSY, cylinder

1шт.

2

812035C1

END

cylinder bearing

1шт.

3

812120C1

PLATE

bearing end

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

1/4 ext-tooth lock

2шт.

4

812121C1

ROD

ASSY, cylinder piston

1шт.

5

26076R1

LOCK NUT,1 1/8"-12, GB

NUT, 1-1/8-12 hex lock

1шт.

6

812122C1

PISTON

hydraulic cylinder

1шт.

7

810058C1

STOP

piston rod

1шт.

181651

SHIELD

BOLT, 3/8-24 x 2-3/4 hex-hd

1шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex-lock

1шт.

22655R1

WASHER

.406 x .812 x .065

1шт.

8

813015C1

LOCK WASHER

hex-lock

1шт.

9

813057C1

FITTING

stroke control

1шт.

10

813016C1

NUT

stroke control fitting

1шт.

11

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

.875 x 1.062 x .093

1шт.

12

813078C1

SPRING

plunger

1шт.

13

O-RING, stroke control plunger, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

14

813079C1

PLUNGER

stroke control

1шт.

15

813088C1

SPACER

plunger

1шт.

16

O-RING, plunger retainer, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

17

813105C1

RETAINER

plunger

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

.625 x .812 x .094

1шт.

19

NOT USED THIS APPLICATION

1шт.

20

812029C1

ROD

stroke control push

1шт.

17183R1

LOCK PIN,Sl Spring, 5/32" x 5/8"

PIN, 5/32" x 5/8", Slotted

2шт.

21

SEAL, stroke control plunger, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

22

813107C1

SPRING

push rod

1шт.

23

23408R1

WASHER

.469 x .750 x .054

1шт.

24

RING, cylinder piston wear, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

25

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

1.375 x 1.625 x .125

1шт.

26

RING, 4 OD teflon slipper, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

27

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1.375 x 1.625 x .125

1шт.

28

317923R1

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3.625 x 3.875 x .125

1шт.

29

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3.750 x 4.000 x .125

1шт.

30

WASHER, cylinder end bearing O-ring 1/8 x 3-3/4 back-up, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

31

WASHER, 1/8 x 1-3/8 O-ring back-up, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

32

RING, cylinder bearing end lock, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

33

SEAL, piston rod oil wiper, not serviced separately, for service order 1-810074C91, seal repair kit

1шт.

34

NOT USED THIS APPLICATION

1шт.

35

NOT USED THIS APPLICATION

1шт.

36

NOT USED THIS APPLICATION

1шт.

810074C91

SEAL KIT

O-ring and seal repair, consists of ref nos 11, 13, 16 thru 19, 21, 24 thru 33

1шт.
