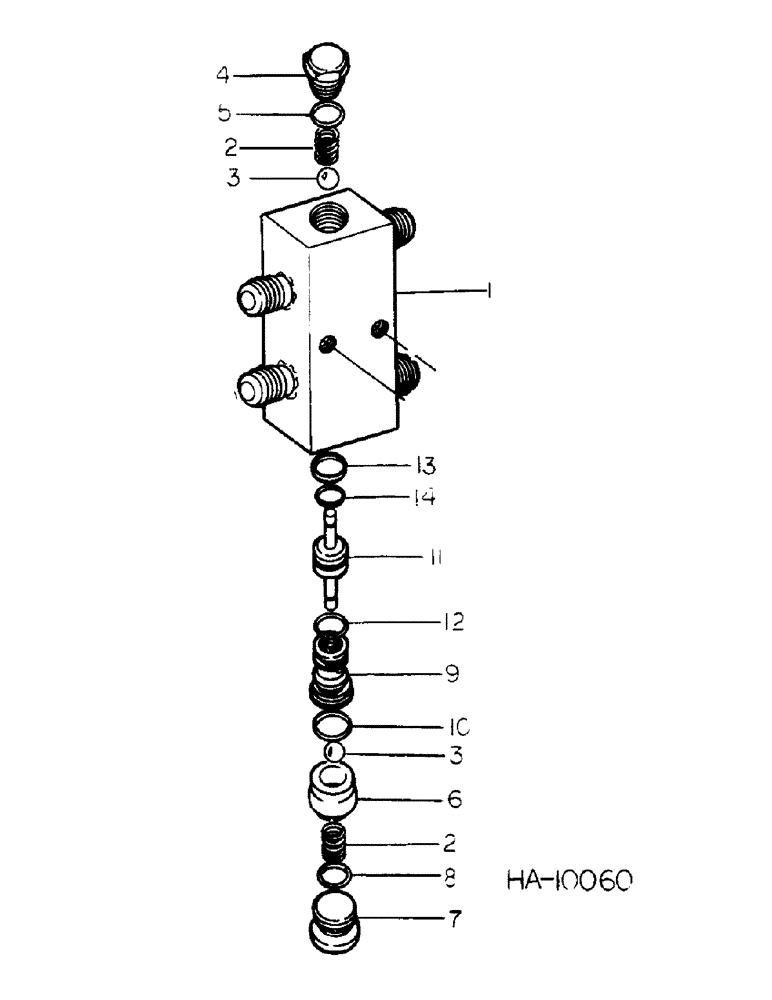

Запчасти Case IH 55 (J-23) - ALTERNATING CHECK VALVE ASSEMBLY, USE WITH DEPTH CONTROL FOR TRACTORS WITHOUT CHECK VALVE

142864C92

VALVE

ASSY, alternating check

1шт.

1

108576C1

BLOCK, valve body

1шт.

2

372649R1

SPRING

check valve

2шт.

3

17016R1

BALL,1/2" Dia

2шт.

4

374089R1

PLUG

check valve centering spring, for valve w/machined pins

1шт.

4

138168C1

PLUG

check valve centering spring, for valve w/teflon seals

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

6

374172R1

NUT

ball retainer

1шт.

7

374088R1

PLUG

D.A. check valve

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

plug

1шт.

9

374087R31

RETAINER

check valve ball

1шт.

10

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Retainer

1шт.

11

530442R2

PISTON ASSY.

PISTON, check valve w/machined pins

1шт.

11

142862C1

PISTON

check valve w/teflon seals

1шт.

REF 11 IS NSS, WILL NOT BE EITHER PER ALLAN JANSSEN. MUST GO TO THE COMPLETE ASSY. CNS

1шт.

12

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

retainer

1шт.

13

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

piston w/machined pins

1шт.

14

142865C1

SEAL

check valve piston teflon

1шт.
