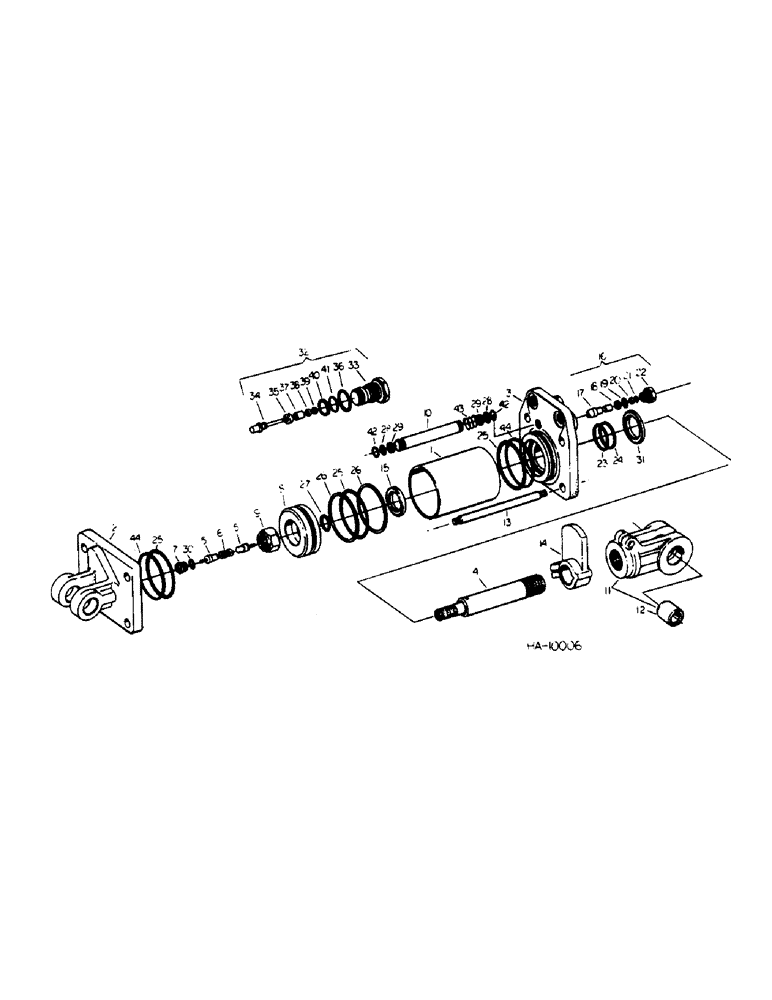

Запчасти Case IH 55 (J-21) - MASTER HYDRAULIC CYLINDER, CROSS

810182C91

CYLINDER

CYL ASSY, 4 x 8 da, opt to use 1-810185C91, Cessna

1шт.

1

811101C1

TUBE,4" ID, 4.5" OD, 4" Length

cylinder body

1шт.

2

811862C1

CLEVIS

cylinder base, for service prior to Aug/79 also order 1-811118C92, kit

1шт.

3

811898C1

END

hydraulic cylinder w/.810DA dia hole at stroke control for service prior to Aug/79 also order 1-811118C92, kit

1шт.

4

811113C1

ROD

cylinder piston

1шт.

REF#4 ROD IS 1 3/8" 11/7/96

1шт.

5

812604C1

VALVE

piston rod poppet

1шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

812688C1

PISTON

cylinder

1шт.

9

24568R1

NUT,1"-14, GB

1-14 hex lock

1шт.

10

812646C1

TUBE,0.39" ID, 0.629" OD

feed

1шт.

11

813038C91

CLEVIS

ASSY, piston rod, includes 2, bushings

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

BUSHING, piston rod clevis, for service order 1-813038C91, piston rod clevis assy

2шт.

13

811117C1

ROD

cylinder tie

4шт.

121358

YOKE

5/8-NF type 5

8шт.

14

811115C1

STOP

piston rod

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

15

811114C1

COLLAR

piston stop

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

16

NOT USED THIS APPLICATION

1шт.

17

NOT USED THIS APPLICATION

1шт.

18

NOT USED THIS APPLICATION

1шт.

19

NOT USED THIS APPLICATION

1шт.

20

NOT USED THIS APPLICATION

1шт.

21

NOT USED THIS APPLICATION

1шт.

22

NOT USED THIS APPLICATION

1шт.

23

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1.375 x 1.625 x .125

1шт.

24

BACK-UP WASHER, not serviced separately, order 1-811118C92, kit

1шт.

25

22287R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

3.625 x 4.000 x .188, for service of 811118C91, prior Jan/79-3 reqd, 811118C92, Jan/79 & since-1 reqd

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3.750 x 4.000 x .125

2шт.

26

BACK-UP WASHER, not serviced separately, order 1-811118C92, kit

2шт.

27

NOT USED THIS APPLICATION

1шт.

28

811089C1

SPRING WASHER

feed tube spring, for service prior to Jan 1979

2шт.

29

370920R1

O-RING,1/2" ID

.500 x .625 x .063

2шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

SEAL, wiper oil, not serviced separately, order 1-811118C92, kit

1шт.

32

811097C91

VALVE

ASSY, stroke control poppet, consists of ref nos 33 thru 41

1шт.

33

HOUSING, poppet valve cartridge, not serviced separately, order 1-811097C91, poppet assy

1шт.

34

PLUNGER, poppet valve, not serviced separately, order 1-8113097C91, poppet assy

1шт.

35

U-CUP, poppet valve, not serviced separately, order 1-811097C91, poppet assy

1шт.

36

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 x .949 x .097

2шт.

37

BUSHING, poppet valve, not serviced separately, order 1-811097C91, poppet assy

1шт.

38

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

.188 x .313 x .063

1шт.

39

WASHER, O-ring back-up, not serviced separately, order 1-811097C91. poppet assy

1шт.

40

WASHER, O-ring back-up, not serviced separately, order 1-811097C91, poppet assy

1шт.

41

379181R1

O-RING,0.614" ID x 0.07" Width

.625 x .750 x .063

1шт.

42

NOT USED THIS APPLICATION

1шт.

43

849259R1

SPRING

feed tube, for service Jan 1979 & since

1шт.

44

WASHER, back-up, for service Jan 1979 & since, order 1-811118C92

2шт.

811118C92

SEAL KIT

hyd cyl seal repair, includes ref nos 23, 24, 25, 26, 29, 30, 31, 38, 44

1шт.
