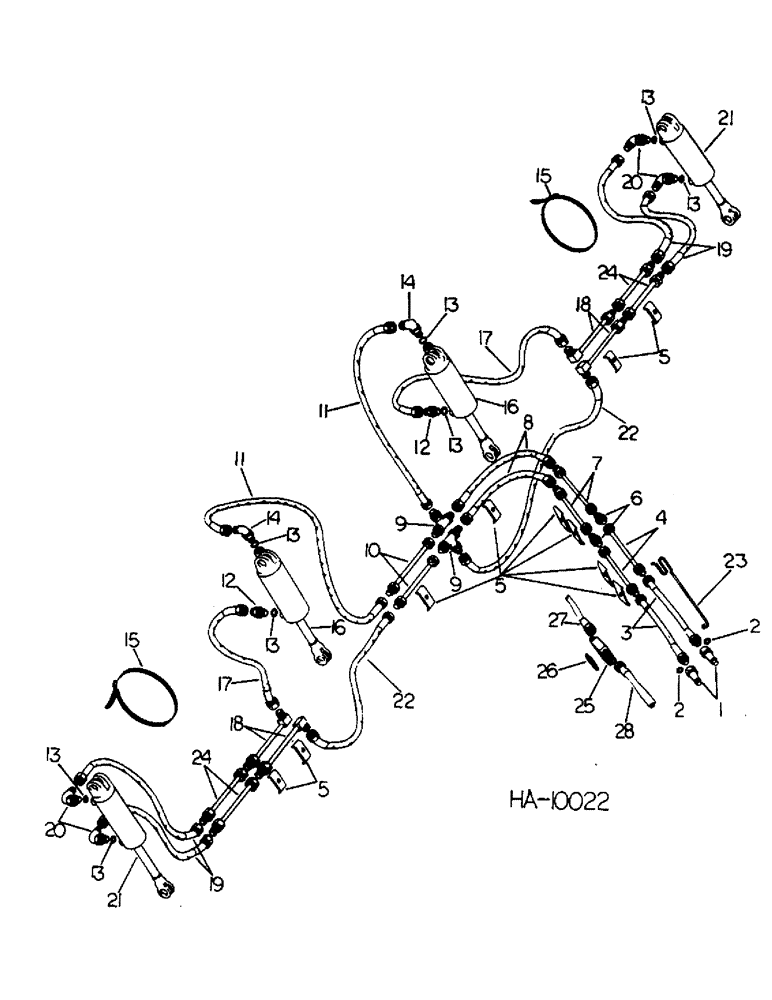

Запчасти Case IH 55 (J-17) - DEPTH CONTROL HYDRAULICS, CESSNA

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/359149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler

2шт.

3

811270C1

HOSE

hydraulic front

2шт.

4

813261C1

TUBE,0.5" OD, 93.5, 5" Length

ASSY, depth control front

2шт.

5

614323R2

CLAMP

hydraulic tube

8шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 37 deg flared tube

2шт.

7

810134C1

TUBE

ASSY, hyd front extension

2шт.

8

675846R91

HOSE ASSY.

HOSE, depth control corner hyd

2шт.

9

9402982

TEE,3/4"-16, 37 Degree

3/4-16 37 deg flared tube

2шт.

10

813265C1

TUBE

ASSY, master hyd cyl RH

2шт.

11

813267C1

HOSE

master hyd cyl pressure

2шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg flared tube short swivel hydraulic

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

short swivel union

8шт.

14

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hydraulic 37 deg flared tube 90 deg adjustable

2шт.

15

816502C1

STRAP

hydraulic hose tie

8шт.

16

810185C91

CYLINDER

CYL ASSY, 4 x 8 da master Cessna, opt to use 1-810182C91, cross, for components refer to master hyd cyl

2шт.

24581R1

PIN

1 x 3.5 std-hd-dld znd type 5

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

17

813077C1

HOSE ASSY.

HOSE, master cyl to slave cyl hyd

2шт.

18

154609C91

PIPE

TUBE ASSY, slave cylinder hydraulic

4шт.

19

810139C1

HOSE ASSY.

HOSE, slave cylinder hyd, 4 25 foot

1шт.

19

195504C1

BUSHING

HOSE, slave cylinder hyd, 4 33 foot

1шт.

20

935036R91

ELBOW

slave cylinder 90 deg

4шт.

21

813528C91

CYLINDER

CYL ASSY, 3.75 x 8 da slave Cessna, opt to use 1-810184C91, cross for components refer to slave hyd cyl Cessna

2шт.

24581R1

PIN

1 x 3.5 std-hd-dld znd type 5

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

22

813266C1

HOSE

hydraulic return jumper

2шт.

23

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

24

813427C1

TUBE

ASSY, slave hyd cyl ext, 4 33 foot

1шт.

25

142864C92

VALVE

ASSY, check, for components refer to check valve assy

1шт.

26

810201C1

BAR

valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

27

125914C1

HOSE

1/2 x 31-inch hyd

2шт.

28

117064C1

HOSE

1/2 x 48-inch hyd

2шт.
