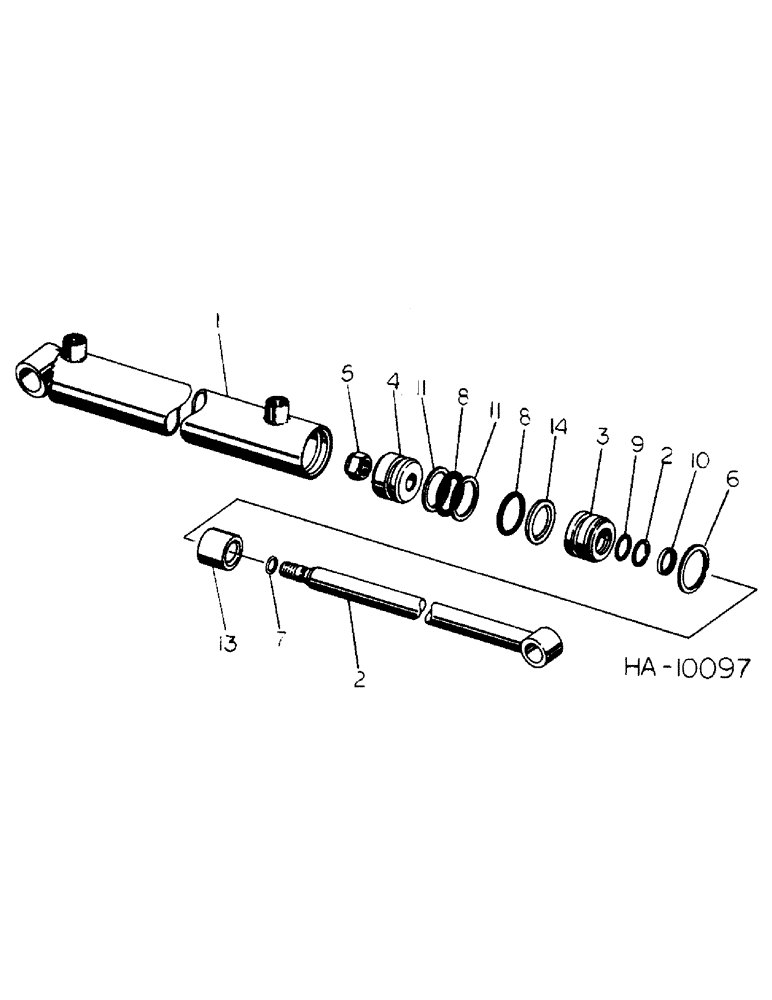

Запчасти Case IH 55 (J-16) - WING LIFT HYDRAULIC CYLINDER

810070C91

CYLINDER

ASSY, wing lift hydraulics, 1/2 x 34 inch double acting

4шт.

1

811090C1

BODY, hydraulic cylinder

1шт.

2

811093C1

ROD

cylinder piston

1шт.

3

811092C1

END

cylinder head

1шт.

4

811094C1

PISTON

cylinder

1шт.

5

9416471

NUT

1-14 hex-lock

1шт.

6

RING, head end retaining, not serviced separately, for service order 1-811096C91

1шт.

7

377028R1

O-RING,0.989" ID x 0.07" Width

1.000 x 1.125 x .063

1шт.

8

22279R1

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

4.125 x 4.500 x .188

2шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1.250 x 1.500 x .125

1шт.

10

SEAL, head end piston rod oil, not serviced separately, for serviced order 1-811096C91

1шт.

11

WASHER, piston O-ring back-up, not serviced separately, for service order 1-81096C91

1шт.

12

WASHER, piston rod O-ring back-up, not serviced separately, for service order 1-811096C91

1шт.

13

811095C1

SPACER

piston rod

1шт.

14

WASHER, cylinder head end O-ring, not serviced separately, for service order 1-811096C91

1шт.

811096C91

SEAL KIT

hydraulic cylinder service, consists of ref nos 7 thru 14

1шт.
