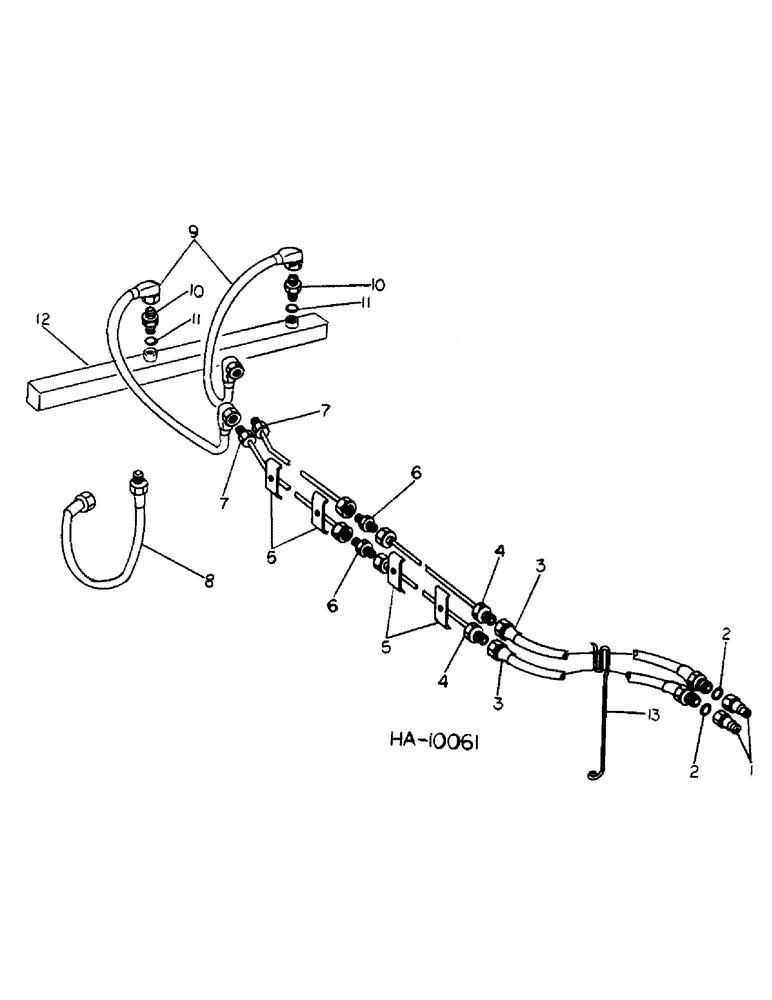

Запчасти Case IH 55 (J-15) - WING LIFT HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/359149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler

2шт.

3

811270C1

HOSE

hydraulic front

2шт.

4

813401C1

HOSE,0.375" OD, 107.5, 5" Length

TUBE ASSY, wing lift hyd front

2шт.

5

614323R2

CLAMP

hydraulic tube

8шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 37 deg flared hyd

2шт.

7

810140C1

TUBE

ASSY, hyd front extension

2шт.

8

HOSE, 70-inch wing lift hyd. cyl, w/1-male & 1-female fitting, for service order 1-100849C1 hose, & 1-9410202 connector

2шт.

9

100849C1

HOSE

64-inch wing lift hyd cyl, w/2 female fittings

2шт.

10

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 hyd 37 deg flared tube short swivel, used w/100849C1 hose

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder union

2шт.

12

810070C91

CYLINDER

ASSY, wing lift hydraulic, 4-1/2 x 34 inch double acting for components refer to wing lift hyd cylinder

1шт.

13

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.
