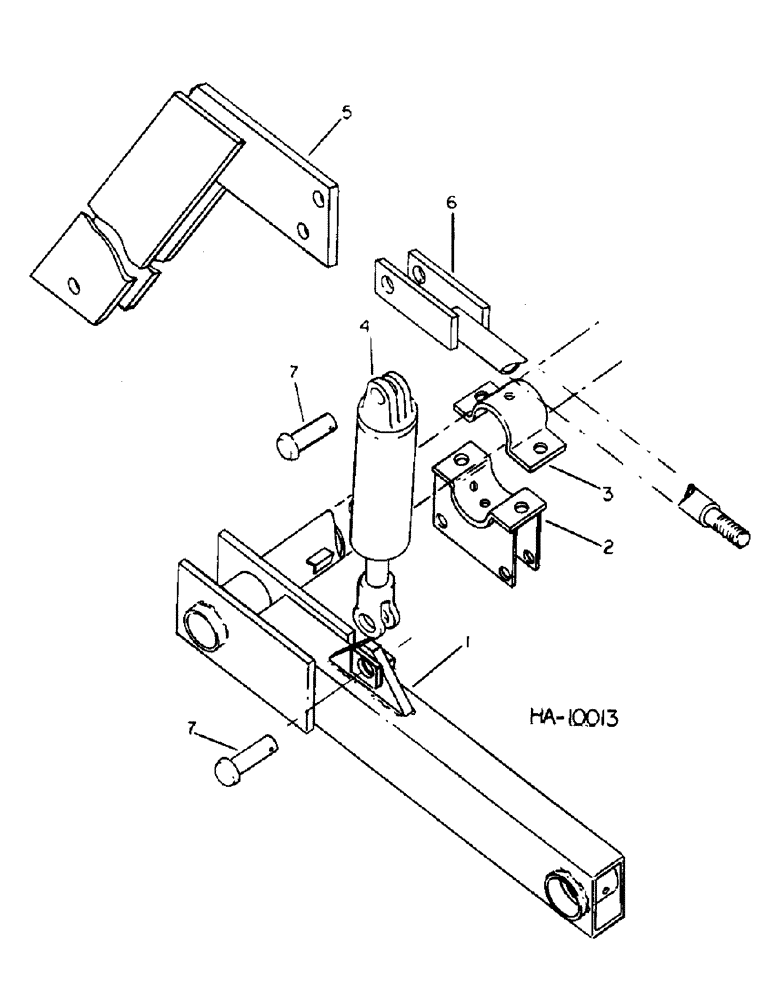

Запчасти Case IH 55 (J-14) - DEPTH CONTROL ROCKSHAFT

1

810060C1

ROCKSHAFT

ASSY, 25 inch clearance

1шт.

1

810063C1

ROCKSHAFT

ASSY, 32 inch clearance

1шт.

19628R91

NIPPLE, LUBE

FIITING, 1/8-27 45 deg self-tapping

2шт.

2

810645C1

SUPPORT

ASSY, rockshaft, replaces 813473C2

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

3

810179C1

CLAMP

rockshaft, replaces 813056C1

4шт.

item #3 part# 810179c1 -- if replacing item #3 then must order #2 also- the new clamps will not fit the old support assembly-jp 28sep99 tsg

1шт.

19628R91

NIPPLE, LUBE

FITTING, 1/8-45 deg lubrication

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

810185C91

CYLINDER

CYL ASSY, 4 x 8 da master hyd cessna, opt w/810182C91, cross, for components refer to master hyd cyl, Cessna

2шт.

4

810182C91

CYLINDER

CYL ASSY, 4 x 8 da master hyd cross, opt w/810185C91, Cessna, for components refer to master hyd cyl, cross

2шт.

5

810103C1

BRACE

ASSY, main frame cyl support

2шт.

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1-8 x 3 hex-hd

2шт.

9849633

NUT,1"-8, G5

2шт.

6

810005C1

ROD

ASSY, cylinder support truss

2шт.

9849633

NUT,1"-8, G5

4шт.

27257R1

HEADED PIN,1" x 3"

PIN, 1 x 3 std-hd-dld type 5

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

7

24581R1

PIN

1 x 3.5 std-hd-dld znd type 5

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
