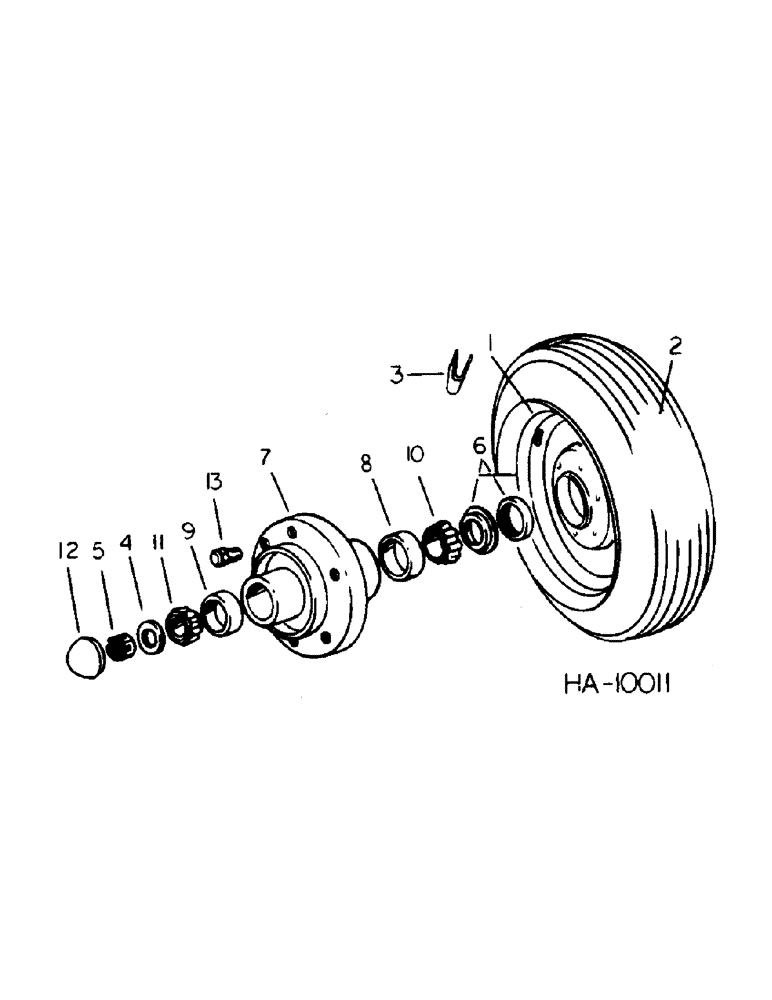

Запчасти Case IH 55 (J-12) - WHEEL AND CONNECTIONS

1

811389C1

RIM

WHEEL, 14 x 6 KB

6шт.

2

TIRE, 9.5L-14.6 ply tubeless

6шт.

387841R91

VALVE

VALV,E TR413 tubeless tire

6шт.

3

811382C1

PACKAGE

tire valve guard service, includes 12 guards & 1-pamphlet

1шт.

4

619373R1

WASHER

.906 x 2.000x .164

6шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 sltd hex

6шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

6шт.

6

606556R91

OIL SEAL

SEAL W/SLEEVE

6шт.

7

606468R11

HUB

ASSY, wheel, includes 1-663558R1, cup and 1-651817R1, cup

6шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

6шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

6шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

6шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

6шт.

12

663906R1

CAP

wheel hub

6шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

36шт.
