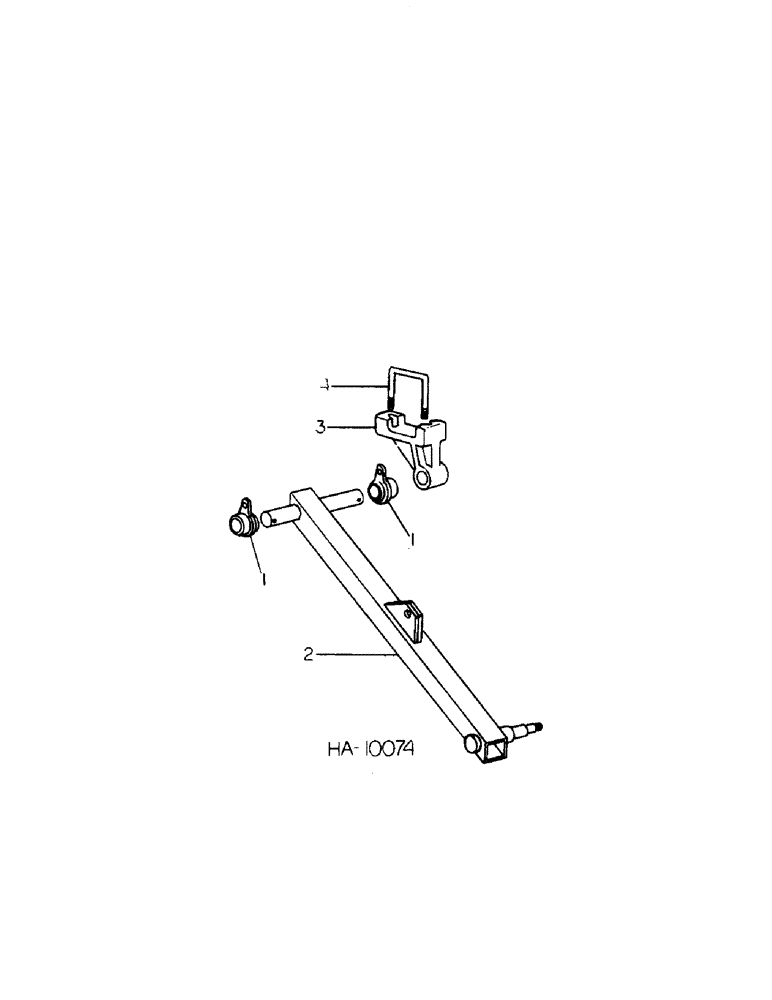

Запчасти Case IH 55 (J-11) - WING FRAME AXLE

1

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING, axle pivot support

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

810088C91

AXLE

ASSY, wing frame, 25 inch regular clearance

2шт.

2

811643C91

HUB ASSY.

AXLE ASSY, wing frame, 32 inch high clearance, includes 1-619373R1, washer, 1-70120D, nut and 1-103387, cotter pin

2шт.

108659

PIN

5/16 x 2-3/4 cotter

4шт.

609376R1

WASHER

1.781 x 2.500 x .105, or as required

8шт.

3

NOT USED THIS APPLICATION

1шт.

4

NOT USED THIS APPLICATION

1шт.
