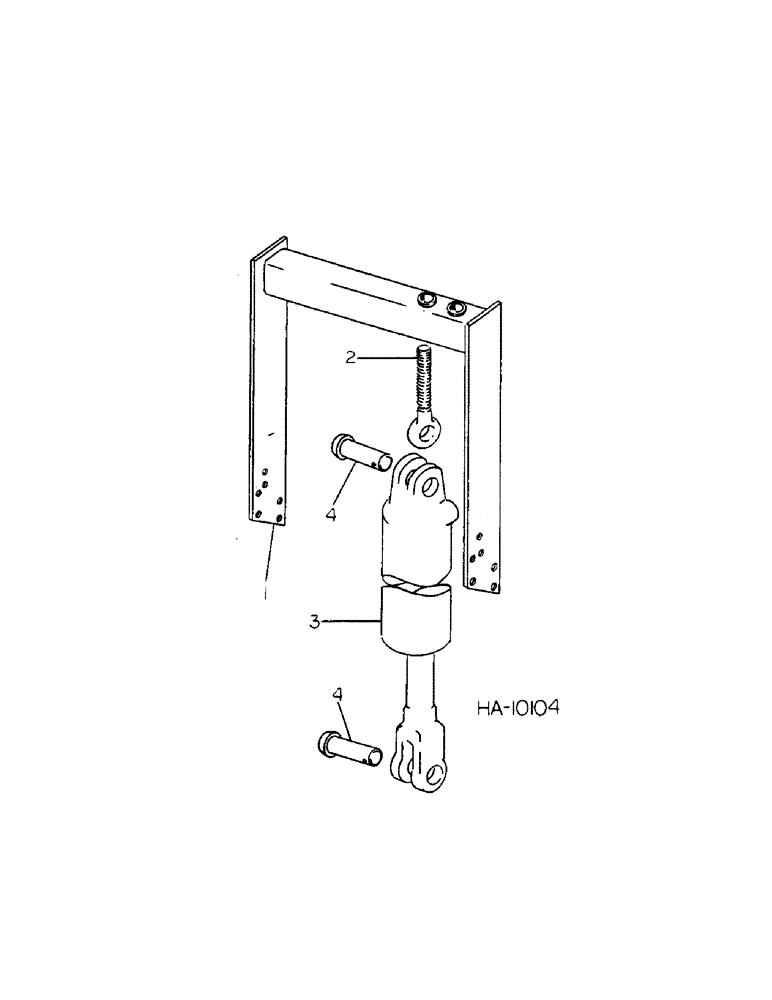

Запчасти Case IH 55 (J-11[A]) - WING FRAME DEPTH CONTROL

1

810116C1

SUPPORT

ASSY, wing wheel cyl LH

1шт.

1

810117C1

SUPPORT

ASSY, wing wheel cyl RH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

2

813200C1

BOLT,7/8" - 9 x 7.50"

wing cylinder eye

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

813528C91

CYLINDER

ASSY, slave hydraulic, 3.75 x 8 inch double acting, Cessna, opt to use 1-810184C91, cross hydraulic cylinder slave, for components refer to slave hydraulic cyl, Cessna

2шт.

3

810184C91

CYLINDER

ASSY, slave hydraulic, 3.75 x 8 inch double acting, cross, opt to use 1-813528C91, Cessna hydraulic cylinder slave, for components refer to slave hydraulic cyl, cross

2шт.

3

87423766R

REMAN-HYD CYLINDER

3.75 x 8

2шт.

3

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

4

24581R1

PIN

1 x 3-1/2 std-hd-dld znd type 5-4

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
