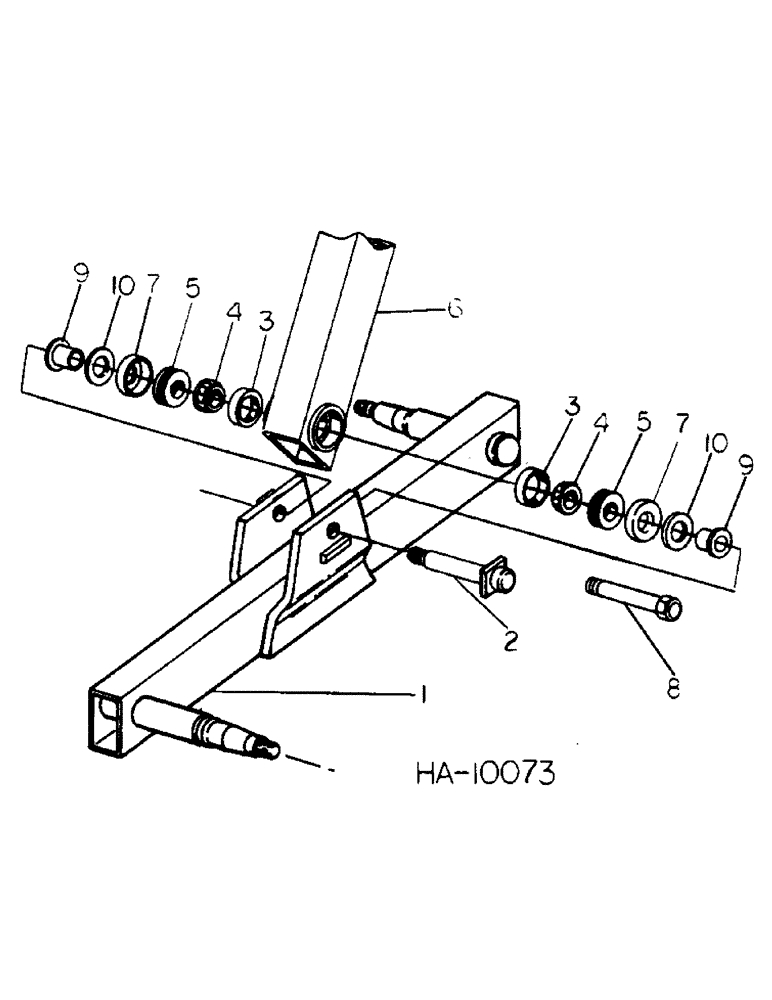

Запчасти Case IH 55 (J-10) - MAIN FRAME AXLE

1

811396C91

AXLE

ASSY, main frame LH

1шт.

1

811397C91

AXLE

ASSY, main frame RH, includes 2-619373R1, washer, 2-70120D, nut and 2-103387, cotter pin

1шт.

2

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 sltd-hex

2шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

3

651817R1

BEARING CUP

CUP, axle pivot bearing

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing

4шт.

5

813159C2

SEAL

ASSY, axle pivot

4шт.

6

ROCKSHAFT ASSY, main frame, for components refer to depth control rockshaft

1шт.

7

NOT USED THIS APPLICATION

1шт.

8

NOT USED THIS APPLICATION

1шт.

9

NOT USED THIS APPLICATION

1шт.

10

NOT USED THIS APPLICATION

1шт.
