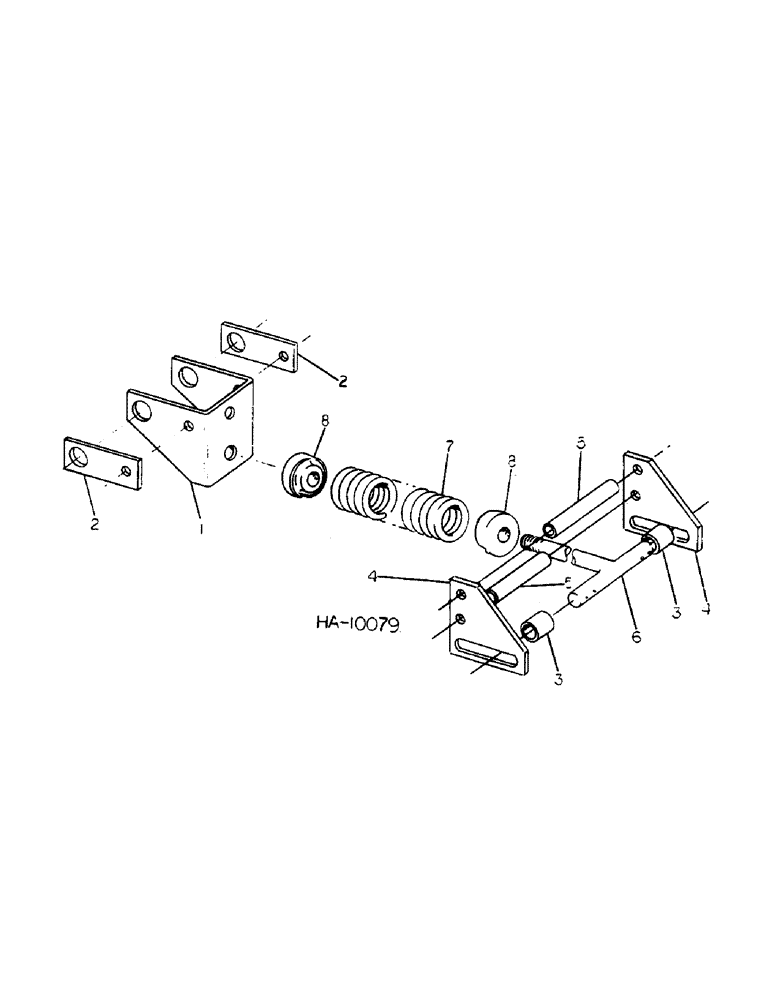

Запчасти Case IH 55 (J-09) - WING LIFT UNIT HELPER SPRING

1

810173C1

CHANNEL

spring support

2шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4-10 x 6-1/2 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

810168C1

BAR

channel spacer

4шт.

3

811152C1

BUSHING

spring holder

4шт.

4

810169C1

BAR

spring holder support

4шт.

5

82798R1

SPACER,1/2" X-Strng Pipe x 4 3/16"

1/2 x 4.188 extra strong

4шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1/2-13 x 6-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

810163C1

HOLDER

ASSY, spring

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

21753R1

WASHER

.781 x 1.500 x .054

8шт.

280954

NUT,3/4"-10, G5

4шт.

7

608347R1

SPRING

wing lower

2шт.

8

608348R1

RETAINER

spring

4шт.
