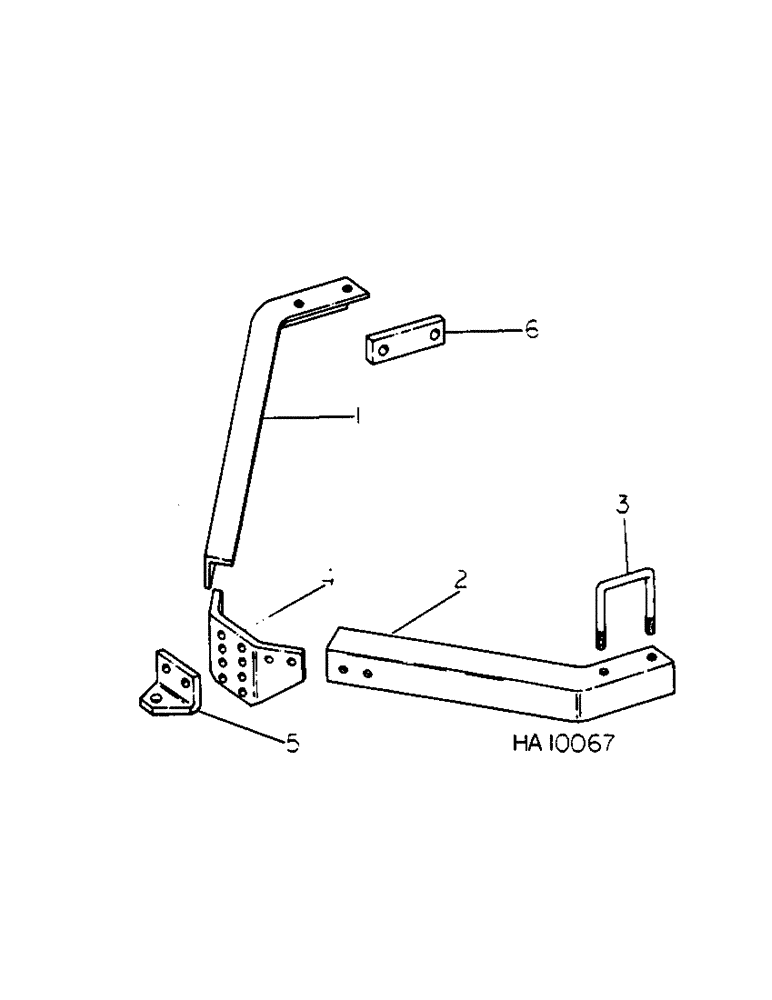

Запчасти Case IH 55 (J-07[A]) - TRAILING HITCH

1

598843R2

ANGLE

trailing hitch LH

1шт.

2

598844R2

ANGLE

trailing hitch RH

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

mounting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

4

598071R1

SUPPORT

hitch

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

5

598072R1

ANGLE

hitch

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

6

NOT USED THIS APPLICATION

1шт.
