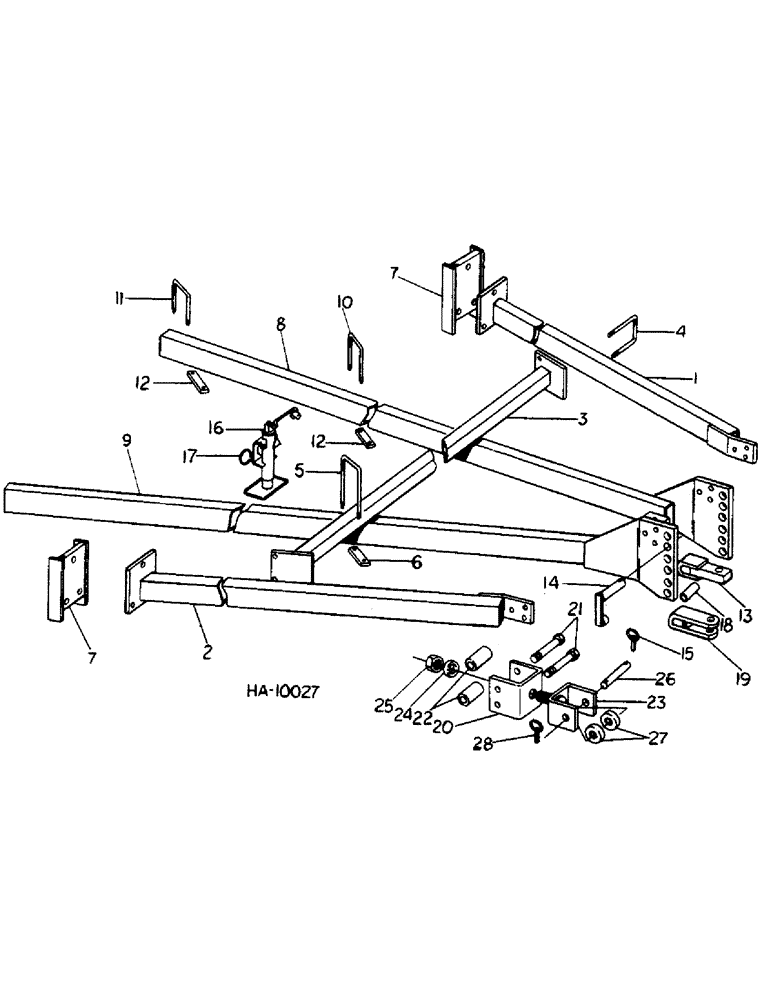

Запчасти Case IH 55 (J-06) - TRACTOR AND SWIVEL HITCH
№
Артикул
Название
Примечание
Количество
1
810042C1
BRACE
ASSY, hitch LH
1шт.
2
810043C1
BRACE
ASSY, hitch RH
1шт.
3
810130C1
BRACE
ASSY, hitch cross
1шт.
4
811627C1
BOLT
U-BOLT, cross brace
2шт.
5
810141C1
BOLT,U, 5/8" - 11 x 10"
U-BOLT, cross brace
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
6
812662C1
BAR
U-bolt mounting
2шт.
7
810145C1
SUPPORT
ASSY, hitch brace rear
2шт.
20166R1
BOLT,Hex, 5/8" - 11 x 6", Gr 5
5/8-11 x 6 hex-hd
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
8
810035C1
BEAM ASSY, hitch LH
1шт.
9
810036C1
BEAM
ASSY, hitch RH
1шт.
19866R1
BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5
3/4-10 x 6-1/2 hex-hd
3шт.
10
810050C1
BOLT,U, 5/8" - 11 x 13.50
U-BOLT, hitch beam front
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
11
812864C1
U-BOLT,5/8" - 11 x 11.6"
hitch beam rear
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
12шт.
12
812865C1
BAR
U-bolt clamping
8шт.
13
605866R91
TOW BAR
CLEVIS ASSY, heavy duty hitch
1шт.
14
810066C2
PIN
ASSY, hitch clevis
1шт.
15
810030C1
PIN
hitch klik
1шт.
21718R1
WASHER
1.531 x 2.250 x .105
1шт.
16
810152C91
JACK
ASSY, tractor hitch, for comps refer to tractor jack
1шт.
17
24592R1
SNAP RING,#250, Ext
Ring, Snap, , jack #250, Ext
1шт.
18
597326R1
SPACER
BUSHING, hitch clevis
1шт.
19
597324R1
CLEVIS
ASSY, H.D. hitch
1шт.
20
810049C1
CHANNEL, hitch plate pivot
1шт.
21
23675R1
BOLT,Hex, 1"-8 x 7 1/2", G5
1 x 7-1/2 type 5
2шт.
9849633
NUT,1"-8, G5
2шт.
22
651028R1
SPACER, hitch
2шт.
23
810082C1
PIVOT ASSY, hitch swivel
1шт.
24
619936R1
WASHER
pivot bolt
1шт.
25
810092C1
NUT
2-4.5 hex
1шт.
26
810086C1
PIN
hitch clevis pivot
1шт.
119203
PIN,3/8" x 3"
Split (Cotter), 3/8" x 3"
1шт.
27
810085C1
BUSHING
swivel pivot
2шт.
28
810030C1
PIN
hitch klik
1шт.
Выбрано товаров: 42
