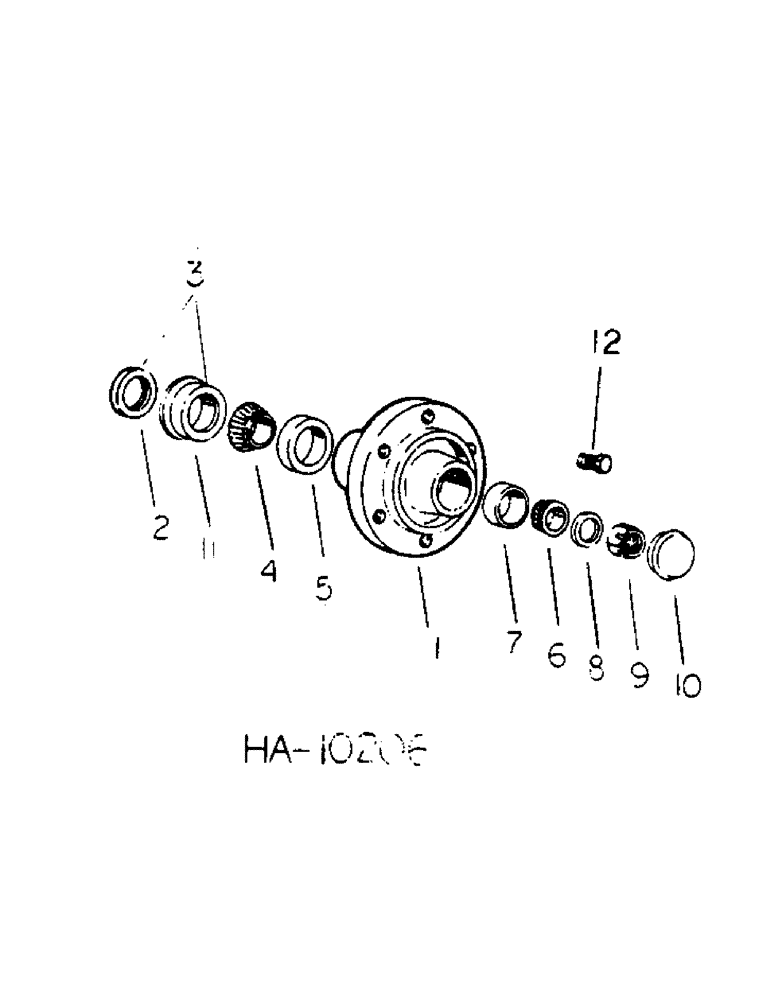

Запчасти Case IH 55 (B-07[A]) - HUB AND CONNECTIONS, 7 FOOT AND 11 FOOT TWO RANK, 7 FOOT AND 13 FOOT THREE RANK MODEL

1

619353R1

HUB

wheel, mach built prior to May 1970

2шт.

1

591535R1

HUB

wheel, mach built May 1970 & since

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil, mach built May 1970 & since

2шт.

3

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

axle inner, mach built prior to May 1970

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner bearing, macyh built May 1970 & since

2шт.

5

651817R1

BEARING CUP

CUP, wheel hub inner bearing, mach built May 1970 & since

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

8

467750R1

WASHER

.781 x 1.500 x .015

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

472222R1

SLEEVE

oil seal wear

2шт.

12

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel 1/2-20 x 7/8

8шт.
