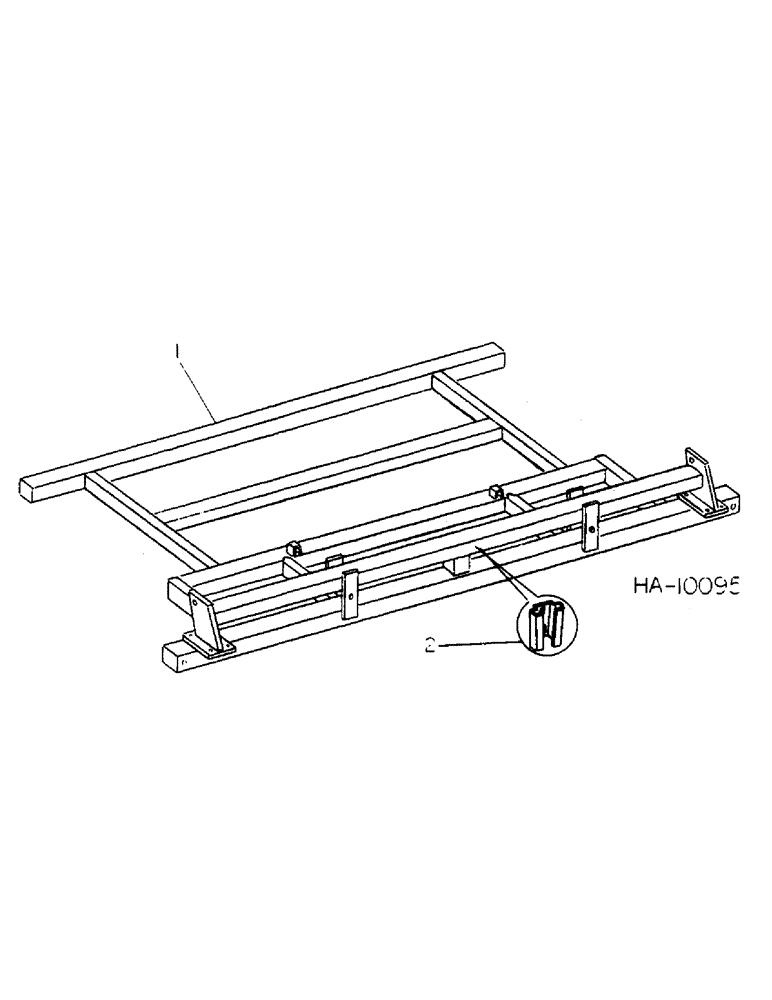

Запчасти Case IH 55 (J-02) - MAIN FRAME

1

811449C91

FRAME ASSY, main, replaces 810027C1, includes 1-61907C1, 2-810170C1

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, general warning

1шт.

810170C1

PRODUCT GRAPHIC

caution

2шт.

2

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
