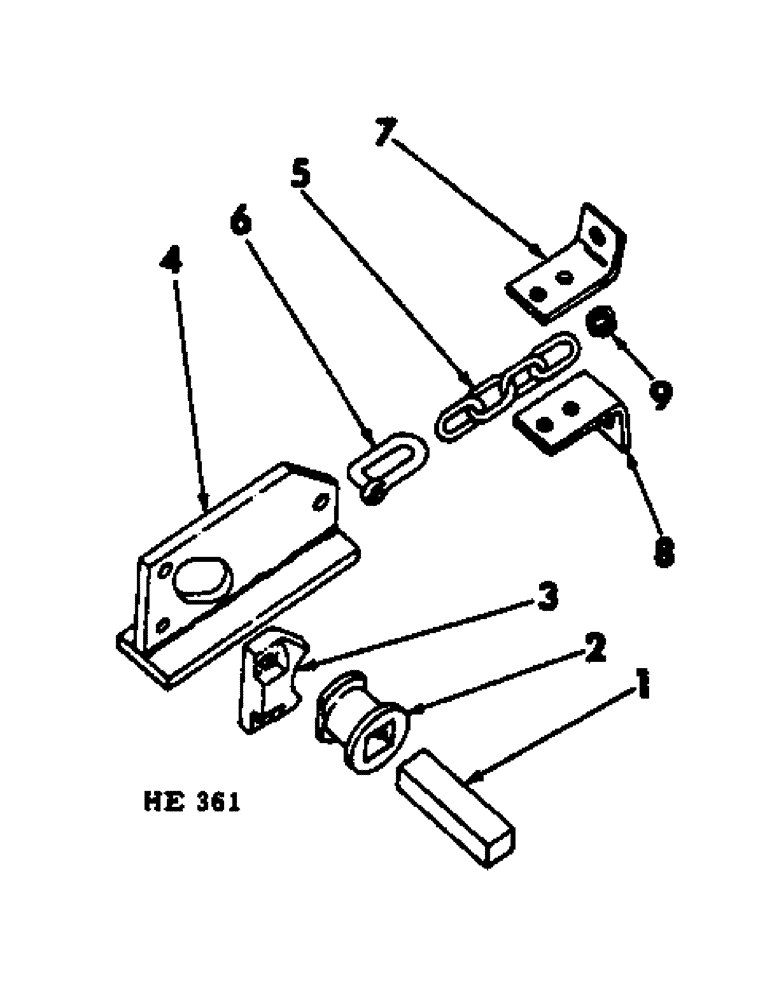

Запчасти Case IH 55 (H-07) - ROD WEEDER ROD AND MOUNTING

1

ROD, weeder, 11 foot, for service order 1-594700R1, and cut to 132 inches in length

1шт.

1

ROD, weeder, 14 foot, for service order 1-594700R1, and cut to 168 inches in length

1шт.

1

594700R1

ROD, weeder, 18 foot

1шт.

2

L3175

SPOOL

rod bearing

1шт.

3

L3174

BEARING

weeder rod

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

594743R11

BRACKET ASSY, weeder rod attaching

1шт.

5

594745R1

CHAIN, weeder rod attaching, 6 links

1шт.

5

594746R1

CHAIN, weeder rod attaching, 41 links

1шт.

5

594747R1

CHAIN, weeder rod attaching, 76 links

1шт.

6

594748R1

LOCK, chain

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

812054C1

ANGLE, chain attaching upper

1шт.

8

812055C1

ANGLE, chain attaching lower

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

Angles & spacer together Hex, 5/16"-18 x 1 1/4", G5

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 type 5, angles & spacer together

2шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

9

469925R1

SPACER, attaching angle

1шт.
