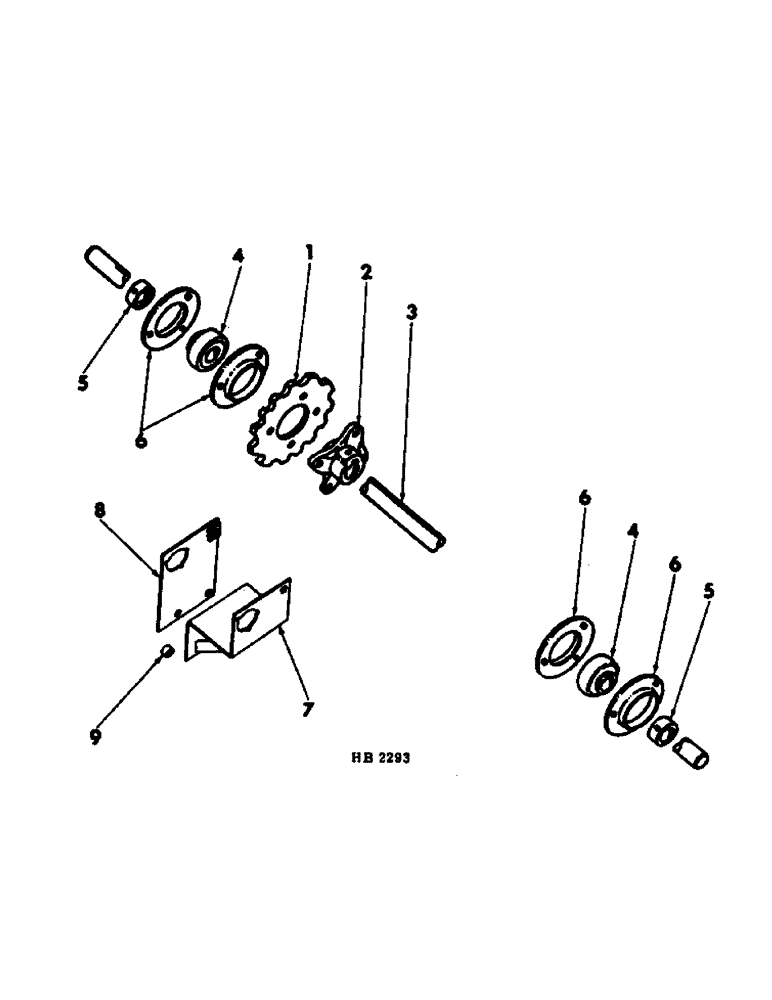

Запчасти Case IH 55 (H-06) - ROD WEEDER BOOT DRIVE AND MOUNTING

1

605197R1

SPROCKET ASSY.

SPROCKET, boot drive 13T

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

594722R1

HUB, boot drive sprocket

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 sq x 2-1/8 parallel

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hdl/hs set

1шт.

3

594728R1

SHAFT, boot drive

1шт.

4

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

boot drive shaft

2шт.

5

455102R21

COLLAR

ASSY, bearing lock, includes 1-102592, screw

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hdl/hs set

2шт.

6

462360R1

FLANGED BEARING

TTE, bearing

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

594730R91

BRACKET ASSY, drive shaft inner RH

1шт.

7

594731R91

BRACKET ASSY, drive shaft inner LH

1шт.

8

594732R11

BRACKET ASSY, drive shaft outer RH

1шт.

8

594733R11

BRACKET ASSY, drive shaft outer LH

1шт.

9

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

drive shaft bracket

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
